6KWH Juice Coconut Water Packing Machine Plastic Bottle 380V
|
6KWH Juice Coconut Water Packing Machine Plastic Bottle 380V
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
Product Details
Features:
The Equipment Is Of Medium Size, With Quick Changeovers And Adjustments.
Sorting Method:
Horizontal Packaging Arrangement, Dual Robotic Gripper Bottle Feeding, Automatic Bag Feeding
Scope Of Application:
Suitable For 100ml To 5L Bottle Sizes Across Various Industries
Production Capacity:
Taking A 500ml Bottle As An Example，Production Capacity Is Typically Around 8,000 To 10,000 Bottles Per Hour.
Packing Details:
Export Standerd Wooden Case
Automatic Grade:
Automatic
Maximum Power Consumption:
6KW/H
Warranty:
1 Year
Highlight:
Plastic Bottle coconut water packing machine
,380V coconut water packing machine
,380V juice packaging machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description

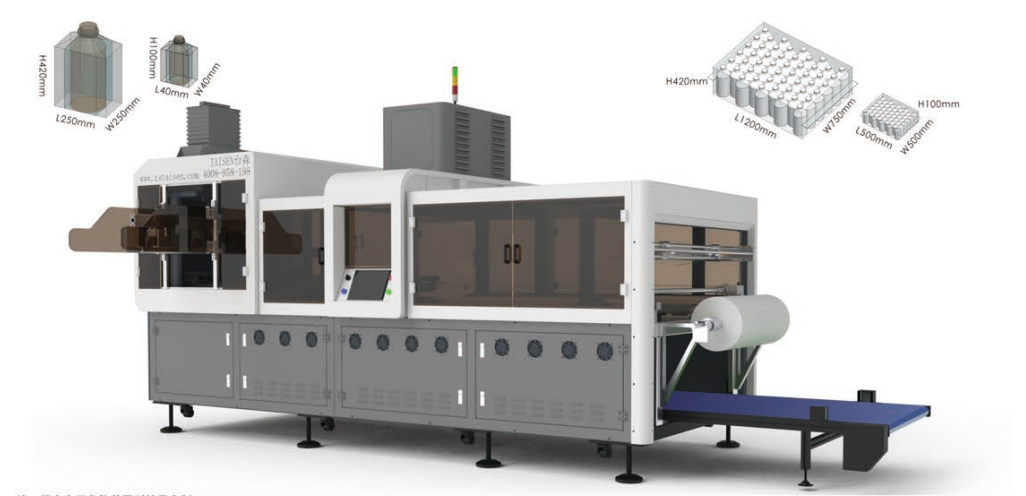

39-12.1C/17.1C Automatic Packaging Machine
This medium-volume automatic packaging machine features quick changeover and adjustment capabilities. It utilizes horizontal packaging arrangement with dual robotic grippers for bottle handling and automatic bag supply. Suitable for various industries handling 100ml-5L bottles, with maximum packaging dimensions of 1200mm × 750mm × 420mm. Production capacity reaches approximately 8,000-10,000 bottles per hour (based on 500ml bottles).
Technical Specifications
| Equipment Dimensions (L×W×H): | 5200mm × 1880mm × 2400mm | Maximum Package Size (L×W×H): | 1200mm × 750mm × 420mm |
|---|---|---|---|
| Equipment Frame Material: | 40mm × 80mm × 4.0mm Carbon Steel | Minimum Package Size (L×W×H): | 500mm × 500mm × 100mm |
| Equipment Appearance: | Sheet Metal Spraying Gray/White | Package Arrangement Form: | Horizontal Arrangement |
| Input Gas Source: | 0.6-0.8MPa | Fastest Cycle Time for Single-Row Bottle Arrangement: | 4 seconds/row |
| Input Voltage: | 380V 50Hz | Bottle Feeding to Reverse Beat Time: | 15 seconds/round trip |
| Maximum Applicable Bottle Dimensions: | Ø250mm × H420mm; L250mm × W250mm × H420mm | Docking Height of Bottle Feeding Conveyor: | 1200-1000mm Adjustable |
| Minimum Applicable Bottle Dimensions: | Ø40mm × H100mm; L40mm × W40mm × H100mm | Bottle Feeding Method: | Dual-Channel Robotic Gripper |
| Maximum Gas Consumption: | 10L/min | Maximum Power Consumption: | 6KW/H |
| Fastest Single-Package Production Capacity: | 80 bags/hour (actual capacity subject to packaging specifications) | ||
Performance Features
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Use of Plastic Bags: | Rolled Bag | Adjustment Point 7 (Upper Bag Opening Height): | Auto |
| Equipment Bag Supply Mode: | Automatic | Change Production Settings Part 8 (Lower Bag Opening Width): | Manual; Auto |
| Automatic Bottle Jam Alarm: | Yes | Adjustment Point 9 (Lower Bag Opening Height): | Auto |
| Automatic Alarm for Card Wallets: | Yes | Adjustment Point 10 (Bag Mouth Upper Sealing Height): | Auto |
| Number of Sealing Lines: | 2 | Change Production Settings Part 11 (Lower Bag Mouth Sealing Width): | No Adjustment Needed |
| Broken Bag/Missing Bag Alarm: | Yes | Change Production Settings Part 12 (Bottle/Bag Pressing Height): | Auto |
| Bag Sealing and Tightening Function: | Yes | Change Production Settings Part 13 (Packaging Station Width): | Manual; Auto |
| System Remote Communication: | Yes | Change Production Settings Part 14 (Bag Length Adjustment): | Auto |
| System Operation Authority: | 3 Levels | Change Production Settings Part 15 (Bag Width Adjustment): | Auto |
| Changeover Adjustment Point 1 (Bottle Infeed Channel Width): | Manual | Adjustment Point 16 (Bag Tail Upper Sealing Height): | No Adjustment Needed |
| Adjustment Point 2 (Single-Row Bottle Misalignment Correction): | Automatic | Adjustment Point 17 (Lower Sealing Height at Bag Tail): | No Adjustment Needed |
| Adjustment Point 3 (Bottle Storage Area Width): | Manual; Auto | Change Production Settings Part 18 (Bag Width Adjustment): | Manual |
| Adjustment Point 4 (Front-to-Back Position of Bottle Pusher): | Auto | Change Production Settings Part 19 (Bag Roll Material Adjustment): | Mechanical Quick Manual Adjustment |
| Adjustment Point 5 (Bottle Pusher Body Width): | Manual; Auto | Adjustment Point 20 (Bag-Out Conveyor Distance): | Auto |
| Change Production Settings Part 6 (Upper Bag Opening Width): | Manual; Auto |
Product Drawing Showcase
Ordering & Delivery Terms
| Description | Details |
|---|---|
| Product Model | 39-12.1C/17.1C Automatic Packaging Machine |
| VAT Status | Included |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term for software & system |
| Commissioning | Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day) |
After-Sales Service & Support
Quality Assurance: Complete product quality traceability with 1-year warranty period from equipment acceptance date.
Warranty Coverage: Free maintenance during warranty period. After-warranty service incurs travel and material costs.
Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform, including system updates, algorithm settings, and software adjustments.
