PLC Control Beverage Pharma Packaging Machine Equipment 3 phase
|
PLC Control Beverage Pharma Packaging Machine Equipment 3 phase
| Place of Origin | FOSAHN |
| Brand Name | PINCHI |
| Certification | CE |
Product Details
MOQ::
1 Set
Applications::
Food And Beverage, Daily Chemicals And Pharmaceuticals
Packaging Speed ::
8,000-15,000 Bottles/hour
Automatic Grade:
Automatic
Material::
Stainless Steel
Warranty:
1 Year
Delivery Time::
40 Days
Packing Details::
Export Standerd Wooden Case
Highlight:
PLC pharma packaging machine
,3 phase pharma packaging machine
,PLC beverage packaging equipment
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
Equipment Overview

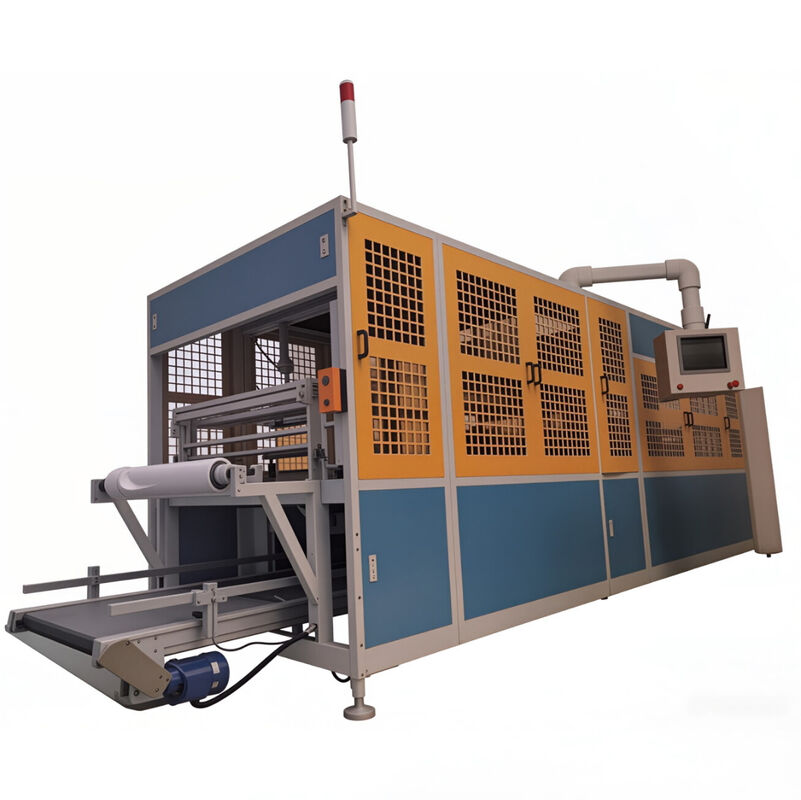

Fully Automatic Bagging, Bottle Alignment, and Bundling Machine designed for automated packaging operations involving bagging, alignment, and bundling of various bottled products. This system efficiently processes bottles in full bundles through feeding and bundling, delivering exceptional speed and efficiency.
The machine integrates multiple functional modules including conveying, positioning, bagging, sealing, and shaping. It is suitable for end-of-line packaging processes of bottled products in industries such as food, beverages, daily chemicals, and pharmaceuticals.
Technical Specifications
| Work System | PLC + Touchscreen + Servo + Variable Frequency Drive |
| Packaging Width Range | 450-700MM |
| Packaging Speed | 8,000-15,000 bottles/hour (varies by product) |
| Packaging Length Range | 500-1200MM |
| Applicable Bottle Range | 50ML-1L (custom racks required for some bottles) |
| Conveyor Type | Chain plate conveyor |
| Packaging Material | PO/PE, thickness 0.03-0.04mm |
| Conveyor Speed | 8-25M/min |
| Bagging Method | Automatic |
| Sealing Method | Heat-activated bonding |
| Air Supply | 0.4-0.6MPa |
| Power Supply | 3-phase AC 380V/50Hz |
| Applicable Roll Film Requirements | Standard 78mm inner core, roll film outer diameter ≤350mm |
| Total Power Consumption | 7.0kW |
Working Principle
The equipment conveys bottles to the positioning station via a conveyor system. Photoelectric sensors or a vision system identify the bottle's position and orientation to ensure precise alignment. Subsequently, a robotic arm or pneumatic device places a preformed bag over the bottle.
Sealing, heat shrinking, or strapping completes the closure and shaping process. Some models feature a rotary station or servo control system, enabling simultaneous bagging of multiple bottles and continuous operation to enhance efficiency. The entire process is PLC-controlled, supporting preset parameters and one-touch switching to accommodate various bottle shapes and bag specifications.
Key Features
- Highly Automated: Achieves full automation from bottle loading, positioning, bagging, sealing to output, significantly reducing manual intervention
- Intelligent Adjustment: Supports one-touch switching for multiple bottle types; select models complete parameter adjustments within 20 minutes to accommodate varying bottle heights, diameters, and bag styles
- Stable and Efficient: Utilizes servo motors and PLC control systems for stable operation, with packaging speeds reaching 10-15 items per minute
- Safety and Reliability: Equipped with overload protection, photoelectric detection, and fault alarm functions to ensure equipment and product safety
- Cost Savings: A single machine replaces 3-4 workers, significantly reducing long-term labor costs and packaging waste
- High Compatibility: Seamlessly integrates with upstream production lines (e.g., filling, labeling, coding) to achieve full-line automation
Payment Terms & Trade Information
| Product Description | Fully Automatic Bagging, Bundling, and Bottle Packing Machine (With VAT) |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long term for software & system |
| Commissioning | Free commissioning within 3 days; customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day |
After Sales Service
The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.
Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
