200ml Empty Plastic Bottle Packing Machine For Fruit Juice Packaging Semi Automatic
|
200ml Empty Plastic Bottle Packing Machine For Fruit Juice Packaging Semi Automatic
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
Product Details
Name::
200ml Empty Plastic Bottle Packing Machine For Fruit Juice Packaging Semi Automatic
Automatic Grade::
Semi-automatic
Bottle Material::
PET/PE/PP
Production Capacity::
Taking 500ml Bottles As An Example, 4,000 Bottles Per Hour
Adjustment Method::
Mechanical Adjustment
Bag Feeding Method::
Manual Bag Feeding
Warranty::
1 Year
Bottle Feeding Direction::
Left-side Feeding
Scope Of Application::
Suitable For Bagging Round And Square Bottles.
Highlight:
200ml Empty Bottle Packing Machine
,Fruit Juice Bottle Packing Machine
,Semi Automatic fruit juice packaging machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20 SETS
Product Description
30-02C Semi-automatic Empty Plastic Bottle Packing Machine
Equipment Overview of Bottle Packing Machine
The 30-02C Semi-automatic Empty Plastic Bottle Packing Machine is an industrial packaging solution designed for efficient bundling operations. This equipment requires manual feeding of packaging materials and products while automatically completing the strapping process. Engineered specifically for plastic bottles and similar items, it features high automation capabilities that simultaneously seal, cut, and shrink packaging in a single operation. This enables high-speed, unmanned automated operation, helping businesses significantly reduce labor costs. The machine is ideal for packaging HDPE and PET bottles and is suitable for food, pharmaceutical, and related industries.
Technical Specifications of Bottle Packing Machine
| Specification | Details |
|---|---|
| Bottle Change Adjustment Method: | Mechanical Adjustment (Replacing bottle types requires changing components; adjustment takes approximately 10 minutes) |
| Bag Feeding Method: | Manual Bag Feeding |
| Bottle Material: | PET/PE/PP |
| Number of Bottle Types: | Multiple |
| Plastic Bag Material: | PE bottles: LDPE/HDPE; PET bottles: LDPE |
| Single-layer Thickness of Plastic Bag: | ≥0.02mm |
| Maximum Packaging Capacity (based on 500ml bottles): | 4,000 bottles per hour (capacity is inversely proportional to production rate) |
| Bottle Insertion Height: | Adjustable from 1000 to 1200 mm |
| Bottle Feeding Direction: | Left-side feeding (facing the bag discharge direction) |
| Forming and Packaging Length: | Adjustable within the range of 400-1200mm |
| Forming and Packaging Width: | Adjustable within the range of 400-680mm |
| Film Width: | Adjustable within the range of 500-1180mm |
| Allowed Deviation for Plastic Bags: | ±10mm |
| Frame Material: | Powder-coated Carbon Steel |
| Power Supply: | AC 380V/50Hz |
| Air Source: | 0.6-0.8 MPa |
| Equipment Dimensions: | Length 3000mm × Width 1300mm × Height 1980mm |

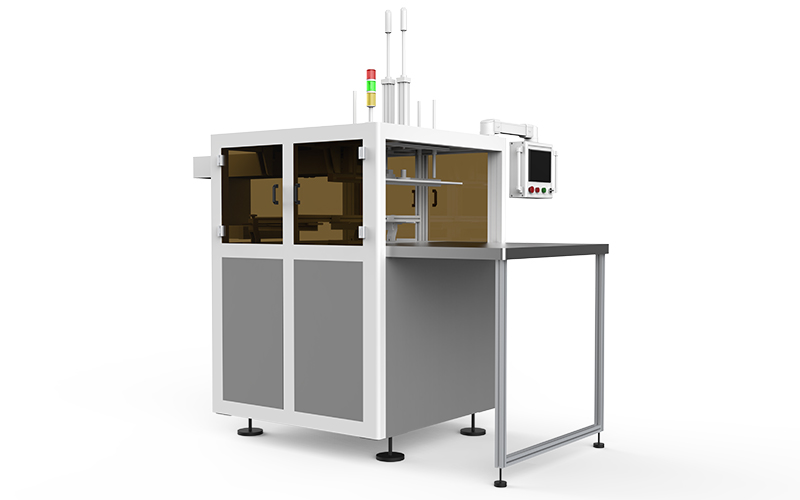

Product Detail Images of Bottle Packing Machine
Payment Terms and Trade Information of Bottle Packing Machine
| Description | Details |
|---|---|
| Product Model | 30-02C Semi-automatic Empty Plastic Bottle Packing Machine (With VAT) |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term support for software & system |
| Commissioning | Free commissioning within 3 days; customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day |
After Sales Service of Bottle Packing Machine
The overall product quality is fully traceable, with a product quality warranty period of 1 year, calculated from the date of equipment acceptance.
Free maintenance is provided during the warranty period. For after-sales service beyond the warranty period, corresponding travel and material costs will be charged.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services through the Pinchi Tech AI cloud platform, particularly for system updates, algorithm settings, software adjustments, and technical support.
