Fully Automatic Empty Plastic Bottle Bagging Machine | PE Film Packaging Equipment For PET Mineral Water Bottles
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
fully automatic plastic bottle bagging machine
,PE film packaging equipment for PET bottles
,empty bottle packing machine with PE film
This Bottle Packing Machine is a fully automatic film-wrapping machine for palletizing stacks of empty plastic bottles, specifically designed for blow molding plants and manufacturers of personal care and chemical containers.
As a professional industrial Bottle Packing Machine, it provides a one-stop solution for the entire production process, including automatic stacking and alignment of empty plastic bottles, PE film unwinding and wrapping, constant-temperature heat sealing, precise cutting, and automatic discharge of finished products.

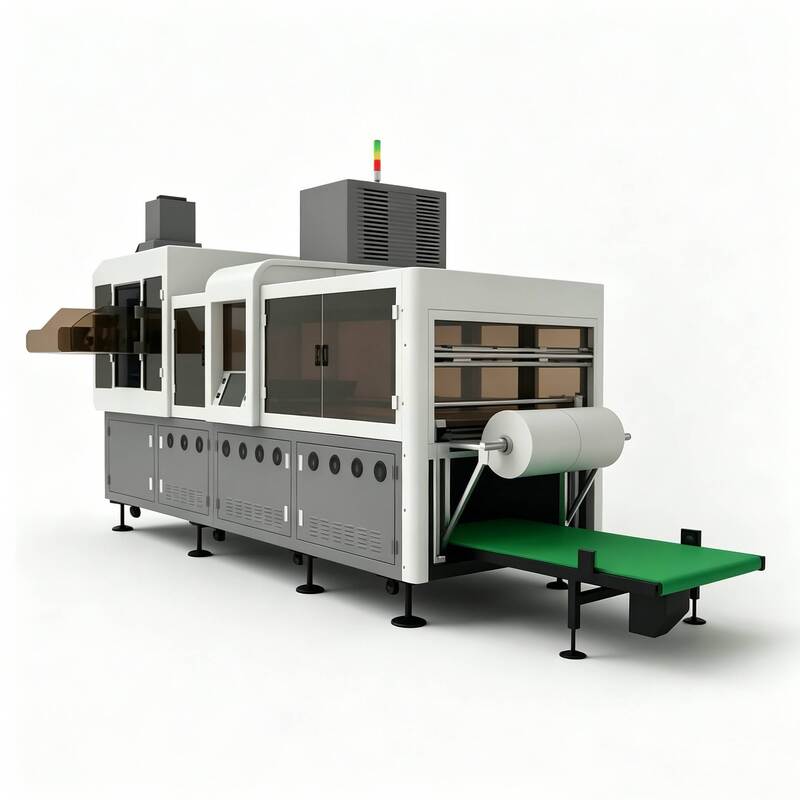

This intelligent Bottle Packing Machine features a fully enclosed, high-hardness metal protective housing with large, high-transparency viewing windows. It is equipped with a PLC-based servo touchscreen control system and a segmented, constant-temperature hot-air heat-sealing chamber integrated with a fully enclosed safety housing, supporting 24-hour continuous, uninterrupted production.
The entire production line can be operated by a single person, who is only required to assist with changing the packaging film. It completely replaces the traditional manual bagging process, effectively reducing labor costs while providing dust-proof, moisture-proof, and scratch-resistant sealed wrapping for the entire stack of empty bottles, resulting in neat, standardized and aesthetically pleasing finished packaging products.
| Equipment Dimensions (L×W×H) | 5200mm × 1880mm × 2400mm | Maximum Package Size (L×W×H) | 1200mm × 750mm × 420mm |
|---|---|---|---|
| Equipment Frame Material | 40mm × 80mm × 4.0mm Carbon Steel | Minimum Package Size (L×W×H) | 500mm × 500mm × 100mm |
| Equipment Appearance | Sheet Metal Spraying Gray/White | Package Arrangement Form | Horizontal Arrangement |
| Input Gas Source | 0.6-0.8MPa | Fastest Cycle Time for Single-Row Bottle Arrangement | 4 seconds/row |
| Input Voltage | 380V 50Hz | Bottle Feeding to Reverse Beat Time | 15 seconds/round trip |
| Maximum Applicable Bottle Dimensions | Ø250mm × H420mm; L250mm × W250mm × H420mm | Docking Height of Bottle Feeding Conveyor | 1200-1000mm Adjustable |
| Minimum Applicable Bottle Dimensions | Ø40mm × H100mm; L40mm × W40mm × H100mm | Bottle Feeding Method | Dual-Channel Robotic Gripper |
| Maximum Gas Consumption | 10L/min | Maximum Power Consumption | 6KW/H |
| Fastest Single-Package Production Capacity | 80 bags/hour (actual capacity subject to packaging specifications) | ||
The entire bagging process is completed with a single button press.
The fully enclosed design effectively blocks out external dust, ensuring that empty bottles remain in a sterile, clean environment before bagging and sealing.
Multiple sets of high-precision sensors, combined with a PLC and central touchscreen, make it easy to switch between packaging specifications, ensuring accurate production counts, no missed bottles, and no bottle damage.
Clean, crisp film cuts and uniform, secure seals ensure the packaging withstands long-distance shipping and repeated handling without breaking or coming apart.
| Product Model | Fully Automatic Empty Plastic Bottle Bagging Machine |
|---|---|
| VAT Status | Included |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term for software & system |
| Commissioning | Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day) |
