ODM Drinking Water Packaging Bottle Machine 18000pcs/Hr 50ml - 2000ml
|
ODM Drinking Water Packaging Bottle Machine 18000pcs/Hr 50ml - 2000ml
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
Product Details
Packingspeed:
20-60 Bottles Per Minute
Automatic Grade:
Automatic
Plastic Bag Material:
PE Bottles: LDPE/HDPE; PET Bottles: LDPE
Warranty:
12 Months
Bottlecapacity:
50ml - 2000ml
Material:
Stainless Steel
Bottle Feeding Method:
Automatic Bottle Feeding
Suit Bottle:
100ml-5L Plastic Bottle
Sorting Method:
Robotic Arm Gripping Bottles
Highlight:
ODM packaging bottle machine
,2000ml packaging bottle machine
,50ml drinking water packing machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description

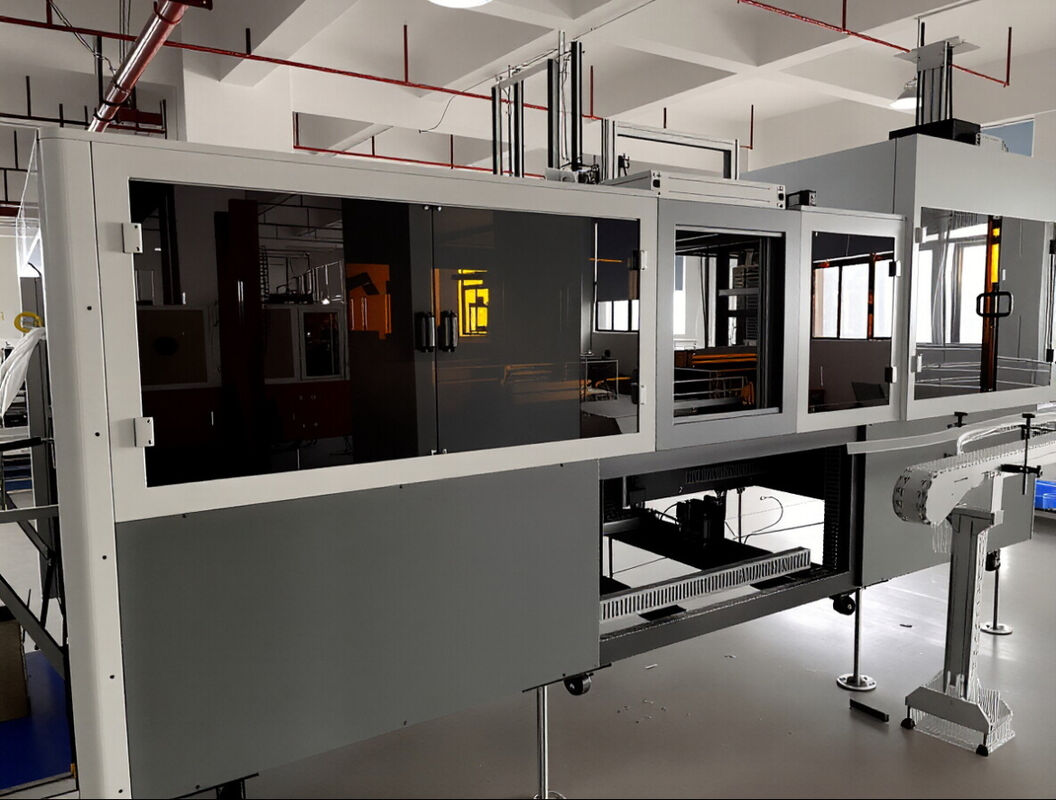

Super Speed Auto Water Packaging Bottle Machine For Hollow Bottle
High-speed automated packaging system designed for hollow bottle packaging with capacity of 18,000 pieces per hour, integrated with air conveyor system.
Equipment Overview of Water Packaging Bottle Machine
This high-speed automatic water packaging bottle machine is a specialized automated packaging solution designed for end-of-line packaging of bottled products. The system automatically loads individually prepared plastic bottles into open packaging bags through a fully automated process.
The machine performs complete packaging operations including bag retrieval, bag opening, bag placement, filling, and sealing, significantly enhancing packaging efficiency while reducing labor requirements. Advanced robotic arms, sensors, and control systems coordinate to ensure comprehensive automation throughout the packaging workflow.
Key Features of Water Packaging Bottle Machine
- High-speed group loading eliminates single-bottle feeding inefficiencies
- Stable gripping and pushing mechanisms prevent bottle collapse during bagging
- Precise positioning systems ensure accurate bottle group entry into bag openings
- Ideal for automating end-of-line processes in beverage, edible oil, and daily chemical product lines
- Significantly boosts production capacity for bottled product packaging
Product Drawings of Water Packaging Bottle Machine
Working Principle of Water Packaging Bottle Machine
Bottle Sorting and Conveying
Disorganized or single-file plastic bottles are arranged into neat rows by sorting machines or conveyor belts, then grouped according to preset patterns.
Bag Retrieval and Opening
Robotic arms or suction cups precisely retrieve pre-made packaging bags from storage. Opening devices using grippers and air pressure fully open and secure bag openings.
Bagging and Bottling
Grouped bottles are smoothly pushed or placed into pre-opened bags by pusher or gripper mechanisms. Equipment design maintains bottle upright position to prevent tipping.
Bag Release and Sealing
After filling, bag clamping devices release, allowing filled bags to transfer to conveyor belts. Subsequent sealing, bonding, or knotting devices seal bag openings as required.
Inspection and Rejection
Photoelectric sensors monitor bag presence, successful opening, and correct bottle counts. System triggers alarms and automatically rejects non-conforming products to ensure packaging quality.
Technical Specifications of Water Packaging Bottle Machine
| Description | Details |
|---|---|
| Model | Super Speed Auto Water Packaging Bottle Machine For Hollow Bottle |
| Production Speed | 18,000 pcs per hour |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, extended for software & system |
| Commissioning | Free commissioning within 3 days, customer bears local expenses for engineer accommodation and tickets |
After Sales Service of Water Packaging Bottle Machine
Complete product quality traceability with 1-year warranty period from equipment acceptance date. Free maintenance during warranty period with applicable charges for services beyond warranty.
Daily operation and maintenance services include free remote operation and maintenance through Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments.
