220V 2KW/H Water Packaging Bottle Machine For Pharmaceutical Packaging
|
220V 2KW/H Water Packaging Bottle Machine For Pharmaceutical Packaging
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
Product Details
Features:
High-speed Arrangement And Bagging Capacity, Rapid Changeover And Machine Adjustment
Sorting Method:
Dual-arm Robotic Gripper Bottle Feeding
Scope Of Application::
Applicable To Bottles Ranging From 50 To 500 Ml, Such As Pharmaceutical And Healthcare Bottles, Cosmetic Bottles, Etc.
Production Capacity::
Taking 100ml Bottles As An Example, Production Capacity Is Typically Around 8,000 To 10,000 Bottles Per Hour.
Equipment Dimensions:
L4200mm*W1800mm*H2900mm
Input Voltage:
220V 50Hz
Maximum Power Consumption:
2KW/H
Warranty:
1 Year
Highlight:
Pharmaceutical Bottle Packing Machine
,2KW/H Bottle Packing Machine
,220V pharmaceutical packaging machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30WORK DAYS
Payment Terms
,T/T
Supply Ability
20SETS
Product Description

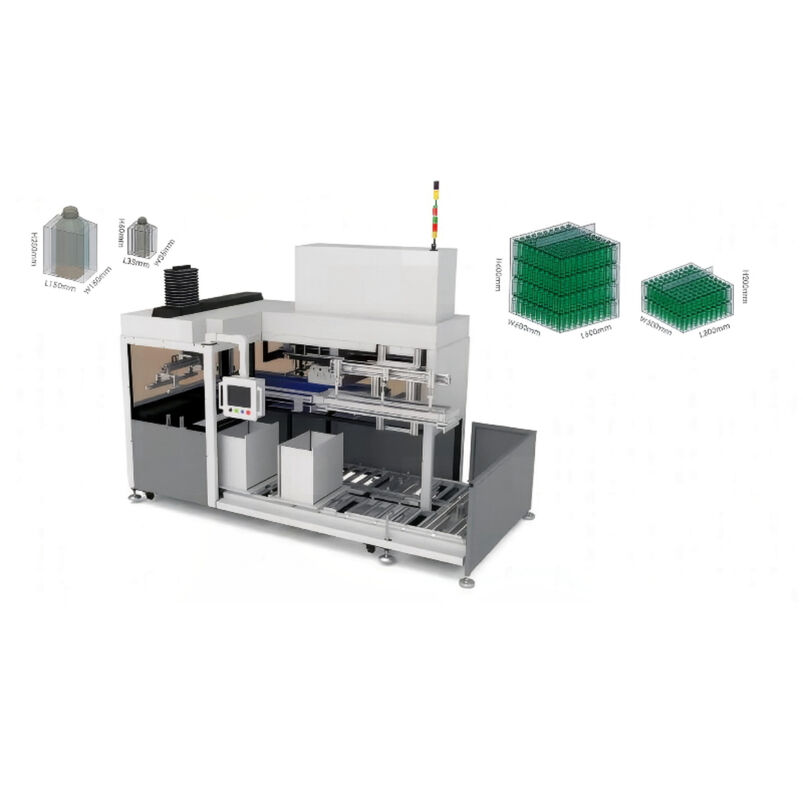

220V 2KW/H Water Packaging Bottle Machine For Pharmaceutical Packaging
42-08C Stack Bagging Machine
Equipment Characteristics of Water Packaging Bottle Machine
The 42-08C Stack Bagging Machine delivers high-speed bagging capacity with quick changeover and adjustment capabilities. Featuring a double-channel manipulator clamping system for bottle handling, this machine is suitable for pharmaceutical, healthcare, and cosmetic bottles within the 50-500ml range. Designed for applications requiring stacked packaging before boxing, it supports storage and transportation needs with maximum encapsulation dimensions of 600mm × 600mm × 600mm. For 100ml bottles, production capacity reaches approximately 8,000-10,000 bottles per hour.
Technical Specifications of Water Packaging Bottle Machine
| Equipment Dimensions (L×W×H): | 4200mm × 1800mm × 2900mm |
| Frame Material: | 80mm × 40mm × 4.0mm Carbon Steel |
| Appearance: | Sheet Metal Spraying Gray/White |
| Input Gas Source: | 0.6-0.8MPa |
| Input Voltage: | 220V 50Hz |
| Maximum Gas Consumption: | 10L/min |
| Maximum Power Consumption: | 2KW/H |
| Maximum Bottle Dimensions: | Ø150mm × H250mm; L150mm × W150mm × H250mm |
| Minimum Bottle Dimensions: | Ø35mm × H60mm; L35mm × W35mm × H60mm |
| Maximum Package Size: | 600mm × 600mm × 600mm |
| Minimum Package Size: | 300mm × 300mm × 200mm |
| Inlet Height: | 1200-1000mm Adjustable |
| Bottling Method: | Double Clamping System |
| Recipe Storage Capacity: | 50 Groups |
| System Operation Authority: | 3 Levels |
| Remote Communication | Yes |
Performance Metrics of Water Packaging Bottle Machine
| Fastest Single Line Arrangement: | 4 seconds/2 lines |
| Fastest Single Layer Arrangement: | 4 seconds/line × (total lines ÷ 2) + 10 seconds |
| Fastest Per Package: | Single-layer time × total number of layers |
| Regulation Mode: | Partially Manual |
| Number of Pockets: | Custom |
| Bag Supply Form: | Manual Supply |
| Number of Bags: | Double Bag (Inner + Outer) |
| Outgoing Packet Mode: | Manual Outsourcing |
| Closing Form: | Manual Processing |
| Bag Opening Seal: | Automatic Hot Melt Sealing |
| Package Effect: | Automatic Vacuum Extraction |
Ordering & Payment Information of Water Packaging Bottle Machine
| Product Model | 220V 2KW/H Water Packaging Bottle Machine For Pharmaceutical Packaging |
| Tax Status | With VAT |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% balance before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, extended software & system support |
| Commissioning | Free commissioning within 3 days (customer covers local expenses for engineer's food, accommodation, and tickets; additional time charged at USD 150/day) |
After-Sales Service & Support of Water Packaging Bottle Machine
Full product quality traceability with 1-year warranty period starting from equipment acceptance date.
Warranty Coverage: Free maintenance during warranty period; travel and material costs apply for services beyond warranty.
Remote Operation & Maintenance: Complimentary remote operation and maintenance services via Pinchi Tech AI cloud platform, including system updates, algorithm settings, and software adjustments.
