Automatic Bottle Palletizing Machine For 100 ml to 5 L Bottles | High-Speed Palletizing System
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |

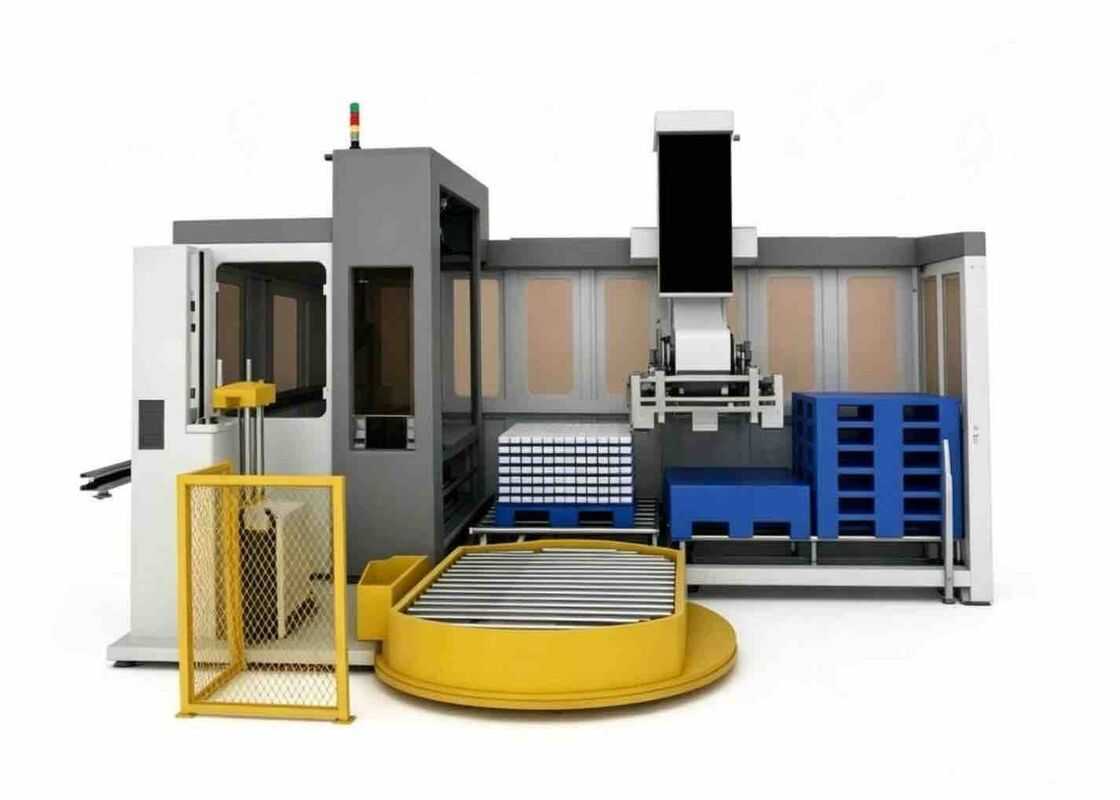

The fully automatic bottle palletizer is specifically designed to handle bottles of various capacities and shapes ranging from 100 mL to 5 L. As specialized equipment for the automated palletizing of finished bottled products at the end of the production line, it integrates multiple cutting-edge features.
- High-speed automatic bottle feeding
- Intelligent arrangement system
- Automatic pallet supply
- Automatic picking and placement of dividers
This equipment is widely used in bottling production lines for food and beverages, alcoholic beverages, condiments, and personal care products. As a core piece of equipment in modern packaging production lines, it significantly boosts production capacity while reducing labor and logistics costs.
| Specification | Details |
|---|---|
| Equipment Dimensions (L×W×H) | 5600mm × 2200mm × 3200mm |
| Equipment Frame Material | 80mm × 40mm × 4.0mm Carbon Steel |
| Equipment Appearance | Sheet Metal Spraying Gray/White |
| Input Gas Source | 0.6-0.8MPa |
| Input Voltage | 380V 50Hz |
| Maximum Gas Consumption | 10L/min |
| Maximum Power Consumption | 6KW/H |
| Maximum Single-layer Arrangement Size | 1200mm × 1100mm × 300mm |
| Minimum Single-layer Arrangement Size | 1100mm × 1000mm × 60mm |
| Production Capacity | Approximately 6,000-10,000 bottles per hour |
| Maximum Stacking Height | up to 2,000 millimeters |
| Item | Details |
|---|---|
| Product Model | Automatic Bottle Palletizing Machine For 100 ml to 5 L Bottles | High-Speed Palletizing System (With VAT) |
| Place of Origin | Made in China |
| Price Validation | 100 Days |
| Payment Terms | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term for software & system |
| Commissioning | Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day) |
The overall product quality has traceability, with a 1-year product quality warranty period calculated from the date of equipment acceptance.
Free maintenance during warranty period. After-sales service beyond warranty period incurs corresponding travel and material costs.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services through Pinchi Tech AI cloud platform, particularly for system updates, algorithm settings, software adjustments, etc.
