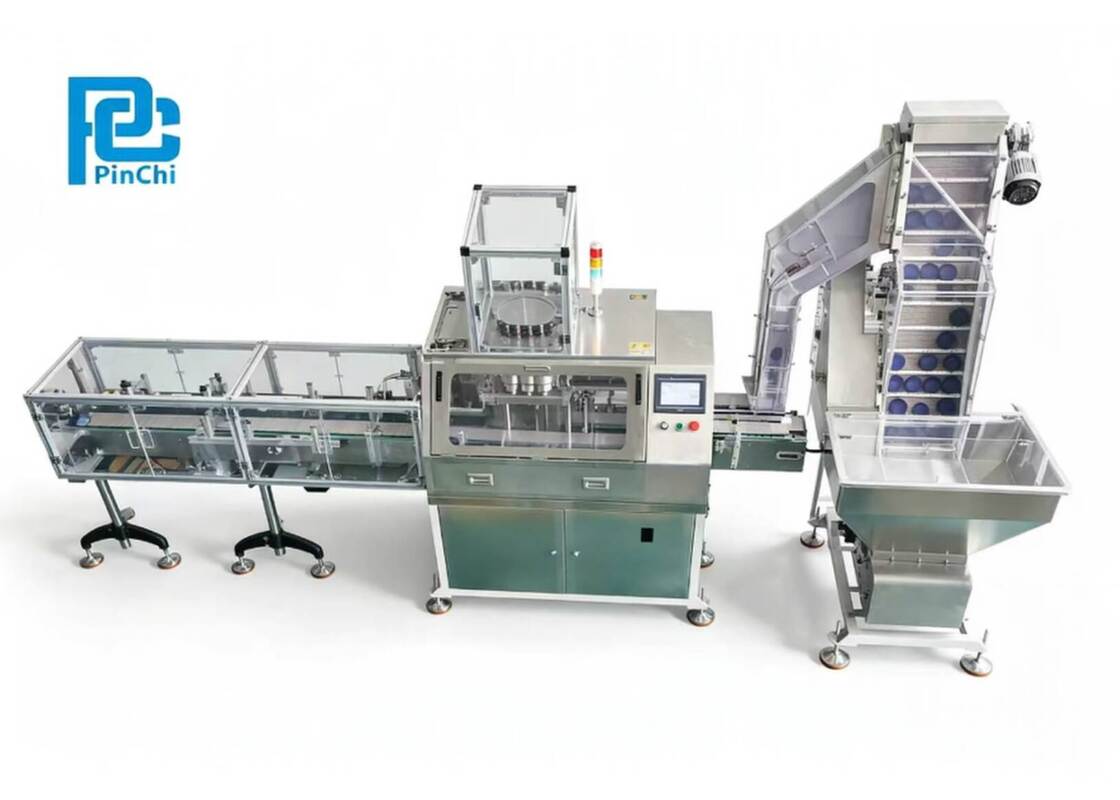

High-Speed Automatic Bottle Cap Liner Assembly Machine for Aluminum Foil & PE Foam
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
The fully automatic bottle cap gasket insertion machine is specifically designed for the mass production of pressed-in gaskets for plastic bottle caps and is compatible with round, square, and irregularly shaped bottle caps.
The complete gasket insertion system integrates a bottle cap lifting and sorting mechanism, a vibrating gasket feeder, a precision gasket pressing station, and a finished product discharge conveyor line, fully replacing the manual gasket insertion process.
The machine features a 304 stainless steel body and a transparent safety guard, meeting the production standards for food and cosmetics cleanrooms. It is compatible with various gasket materials, including PE foam, EVA, and aluminum foil, and is suitable for a wide range of plastic bottle caps, such as those used on mineral water bottles and cosmetic jars, processing multiple cap types with exceptional speed and reliability.
The fully automatic bottle cap gasket inserter is equipped with PLC touchscreen-based intelligent control, allowing for flexible adjustment of production speed, stable operation, and a low failure rate.
| Production Capacity | 40-120 bottles/minute (depending on cap and liner size) |
| Compatible Cap Sizes | 15 mm to 70 mm (customizable options) |
| Gasket Material | Polyethylene foam, inductive aluminum foil, pressure-sensitive materials |
| Power Supply | 220 V/380 V, 50/60 Hz |
| Air Consumption | 0.6-0.8 MPa |
| Machine Materials | High-quality SUS304 stainless steel |
- Full Automatic Integrated Structure: This cap liner insertion machine combines cap lifting sorter, liner feeder, inserting station and output conveyor, one machine completes all liner embedding procedures.
- Food-Grade Stainless Steel Construction: Whole machine frame adopts SUS304 stainless steel, transparent acrylic safety cover, clean and corrosion-resistant, meet GMP production workshop requirements.
- Intelligent PLC Touchscreen Control: Adjustable production speed with a counting function; automatic alarm system that activates when the inner lining is insufficient or the bottle cap is jammed.
- Stable Conveyor System: Mechanical sorting and positioning ensure that the liners are perfectly aligned, preventing the bottle caps from tilting during liner insertion and resulting in a high yield rate for finished products.
| Description of Goods Model | High-Speed Automatic Bottle Cap Liner Assembly Machine for Aluminum Foil and PE Foam (With VAT) |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after the receipt of advanced payment |
| Warranty | 1 year for complete machine, long time for software & system |
| Commissioning | Free commissioning within 3 days, customer bears engineer's local food, accommodation and tickets; extra time charged at USD 150/day |
The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.
Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
