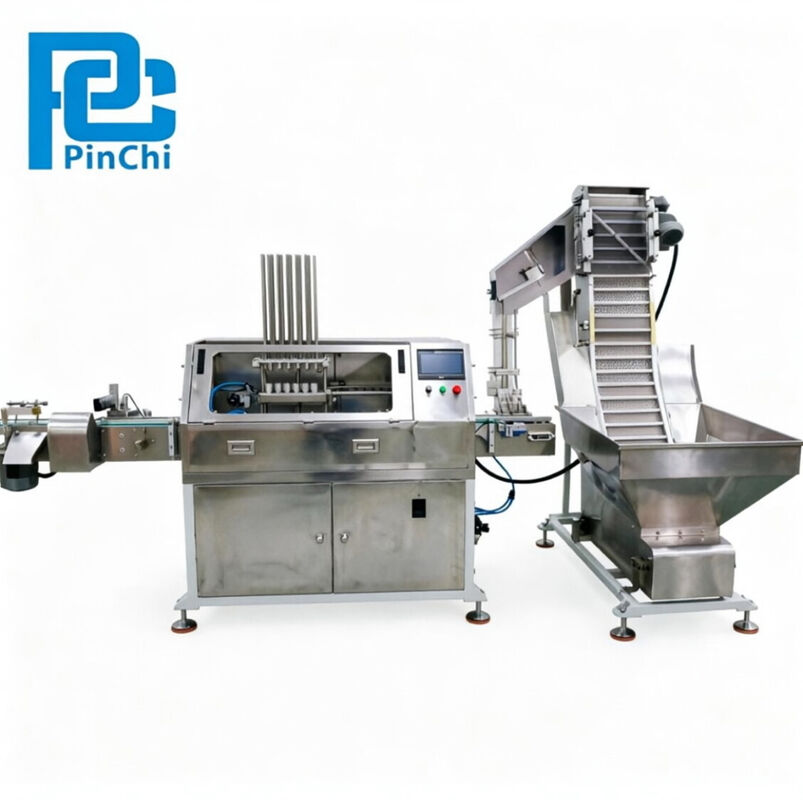

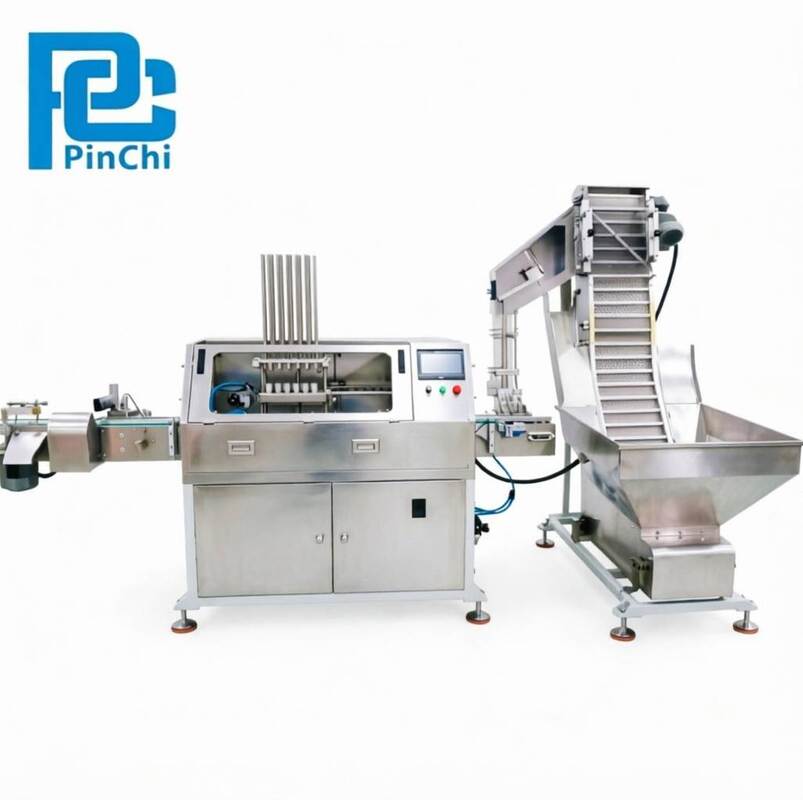

3 Cavities Wadding Plastic Cap Lining Machine For Food Beverage Industry 220V
|
3 Cavities Wadding Plastic Cap Lining Machine For Food Beverage Industry 220V
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
Product Details
MOQ::
1 Set
Machine Dimensions::
3.5 X 1.5 X 1.8 Meters
Scope Of Application::
Food And Beverage, Daily Chemicals, Pharmaceuticals, Packaging, And Other Industries
Total Power::
0.37KW
Cap Size::
Ø20~120mm
Warranty:
1 Year
Material Type::
Plastic Caps, Aluminum Foil Gaskets
Color::
Stainless Steel Finish
Safety Features:
Emergency Stop Button, Safety Guards
Control System:
PLC Control With Touch Screen Interface
Automatic Grade:
Automatic
Machine Weight:
Approximately 500 Kg
Material Type:
Plastic Caps, Aluminum Foil Gaskets
Power Supply:
220V/380V, 50Hz/60Hz
Dimensions:
2000mm X 1200mm X 1500mm (LxWxH)
Production Capacity:
Up To 1000 Caps Per Minute
Noise Level:
< 75 DB
Machine Type:
Automatic
Applicable Bottle Types:
Plastic Bottles, Glass Bottles
Liner Diameter Range:
15mm To 50mm
Material Compatibility:
Plastic, Metal, Composite Liners
Function:
Inserts Liners Into Bottle Caps
Highlight:
3 Cavities Cap Lining Machine
,220V Cap Lining Machine
,Plastic cap wadding machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
3 Cavities Cap Liner Insertion Machine With 0.37KW Total Power And Stainless Steel Finish
Equipment Overview
The 3 Cavities Foam Insert Machine with Tick Out Device (also known as Cap Gasket Inserting Machine) is an automated packaging system specifically designed to automatically insert gaskets into bottle caps. This advanced equipment efficiently inserts aluminum foil liners or PE foam liners into caps, achieving fully automated liner insertion operations.
Working Principle
The operational workflow consists of five key stages:
- Cap Sorting and Feeding: Disorganized caps are sorted and aligned via vibratory feeder or lifting mechanism, ensuring proper orientation before conveyance to the work area
- Gasket Supply and Processing: Gasket material supplied in roll form is punched to specified dimensions or individually retrieved from stack
- Gasket Insertion: Vacuum suction cups or robotic grippers retrieve gaskets and precisely insert them into pre-positioned bottle caps
- Flattening the Gasket: Pneumatic press cylinder mechanism presses gasket against cap bottom, ensuring flat placement without raised edges
- Inspection and Output: Automatic finished product inspection screens out improperly inserted gaskets while qualified products are conveyed via output belt
Technical Specifications & Commercial Terms
| Description | Specifications |
|---|---|
| Equipment Model | 3 Cavities Foam Insert Machine with Tick Out Device |
| VAT Status | Included |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% balance before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty Period | 1 year for complete machine, extended coverage for software & system |
| Commissioning Services | Free commissioning within 3 days (customer covers engineer's accommodation, food, and travel); additional time charged at USD 150/day |
After Sales Service & Support
Quality Assurance: Complete product quality traceability with 1-year warranty period from equipment acceptance date
Maintenance Services: Free maintenance during warranty period; travel and material costs apply for services beyond warranty
Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments
