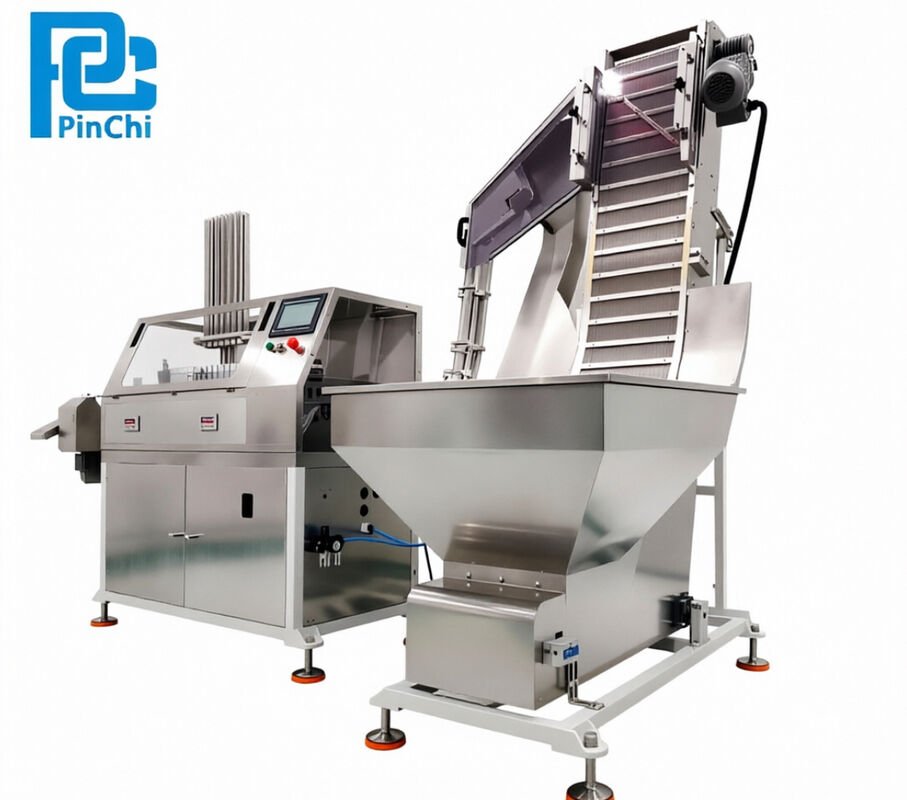

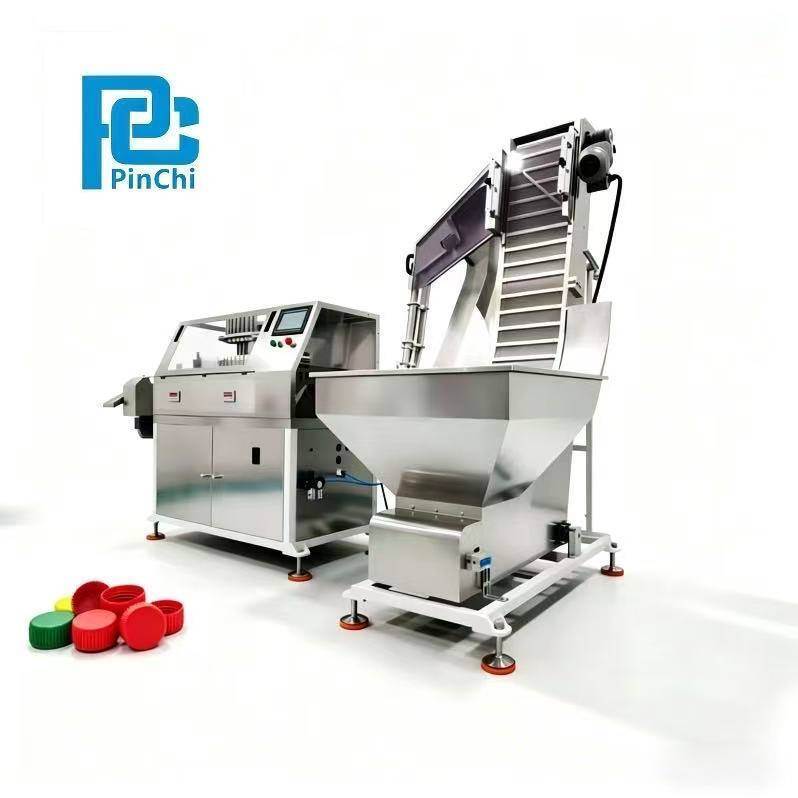

PLC Touchscreen Insertion Cap Lining Machine 380V Semi Automatic
|
PLC Touchscreen Insertion Cap Lining Machine 380V Semi Automatic
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
Product Details
Control System:
PLC With Touch Screen Interface
Material Of Construction:
Stainless Steel Frame And Components
Function:
Inserts Liners Into Bottle Caps
Power Supply:
220V/380V, 50/60Hz
Cap Diameter:
φ30-60mm
Operation Mode:
Semi-automatic Or Fully Automatic
Delivery Time:
40 Days
Packing Details:
Export Standerd Wooden Case
Highlight:
PLC Touchscreen Cap Lining Machine
,380V Cap Lining Machine
,PLC cap liner insertion machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
Foam Insert Machine Link With Elevator With 4 Cavities And Tick Out Function
This advanced automated system is engineered to streamline packaging operations by integrating material handling, multi-cavity processing, and precision ejection. Designed for high-speed production environments, it ensures optimal product protection while maximizing operational efficiency.
Technical Specifications
| Cavity Configuration | 4-cavity system with synchronized processing |
| Ejection Mechanism | Precision "Tick-out" function for consistent part removal |
| Power Supply | Standard industrial electric (35 kW total motor power) |
| Control Interface | PLC touchscreen system with recipe storage (up to 20 programs) |
| Production Capacity | Up to 480 m³/day (96 blocks in 8-hour shift) |
| Operating Range | 1500 mm stroke with 15 kg payload capacity |
| Cycle Speed | 60 cycles/minute with continuous 24-hour runtime |
Distinctive Features
- Automated Workflow Integration - Built-in elevator system seamlessly transfers materials between processing stages, eliminating manual handling and reducing labor costs by up to 40%.
- Precision Ejection Technology - "Tick-out" function ensures gentle yet reliable part removal, maintaining product quality while preventing jams or misalignments.
- Customizable Cavity Design - Four independent processing cavities allow simultaneous production of diverse foam configurations, enabling rapid changeover for different product lines.
- Smart Control System - PLC and touchscreen interface supports recipe storage, real-time monitoring, and seamless integration with existing production management software.
- Energy-Efficient Operation - Optimized motor systems and variable frequency drives reduce power consumption without compromising performance, supporting sustainable manufacturing goals.
- Robust Construction - Heavy-duty components and wear-resistant materials ensure long-term reliability in demanding industrial environments, minimizing maintenance requirements.
Payment Terms and Trade Terms
| Product Description | Foam Insert Machine Link With Elevator With 4 Cavities And Tick Out Function (With VAT) |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long term for software & system |
| Commissioning | Free commissioning within 3 days, customer bears engineer's local food, accommodation and tickets, extra time charged at USD 150/day |
After Sales Service
The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.
Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
