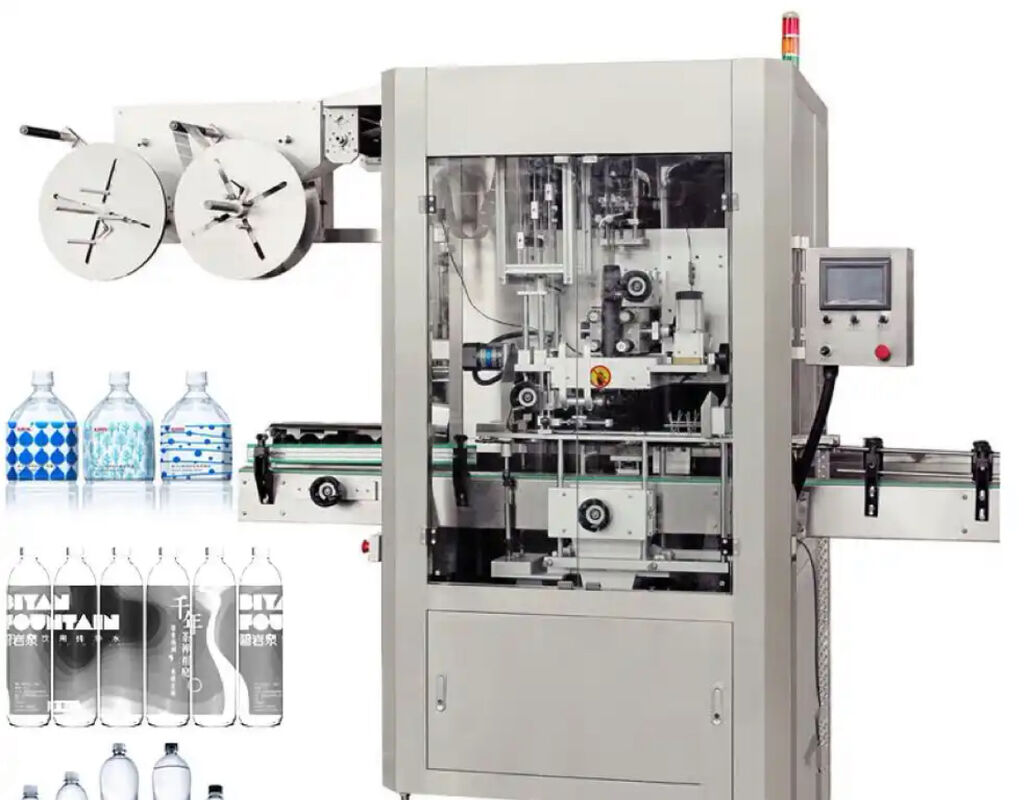

Stainless Steel Packaging Water Bottle Shrink Sleeve Machine 50mm - 150mm
|
Stainless Steel Packaging Water Bottle Shrink Sleeve Machine 50mm - 150mm
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
| Model Number | NC-100 |
Product Details
Minimum Order Quantity:
1 Set
Main Unit Dimensions:
900L*2000W*2200H Mm
Scope Of Application:
Food, Beverage, Pharmaceutical, And Daily Chemical Products Industries
Material:
Stainless Steel
Automatic Grade::
Automatic
Warranty:
1 Year
Delivery Time:
40 Days
Packing Details:
Export Standerd Wooden Case
Highlight:
Stainless steel Bottle Shrink Sleeve Machine
,150mm Bottle Shrink Sleeve Machine
,50mm shrink sleeve packaging machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
Automatic Plastic Cup Water Bottle Shrinking Sleeve Machine with 14000pcs/hour Speed and Auto Infeed System for Food and Beverage Industries
Plastic Cup Water Bottle Shrinking Sleeve Machine
High-speed automatic Water Bottle Shrinking Sleeve Machine applicator with production capacity of 14,000 pieces per hour and integrated auto infeed system.
Technical Specifications Of Water Bottle Shrinking Sleeve Machine
This versatile Water Bottle Shrinking Sleeve Machine is designed for round, flat, square, curved, and cup-shaped containers across food and beverage, medical, daily chemical, and light industrial sectors.
Key Features
- Durable Construction: Primary components made from extruded aluminum profiles and SUS304 stainless steel for waterproofing, rust resistance, and structural stability
- Precision Servo Drive: Servo-driven label collection system meets both high- and low-speed conveying requirements
- Optimized Center Column: Integrated structure ensures precise shrink film positioning with easy height adjustment
- Advanced Cutting System: Five-blade assembly provides precise, stable, and durable cutting with excellent surface flatness
- User-Friendly Control: Color human-machine interface with simple and highly responsive operational control
Equipment Parameters of Water Bottle Shrinking Sleeve Machine
| Main Unit Dimensions: | 900L * 2000W * 2200H mm |
| Machine Weight: | Approximately 200 kg |
| Operating Temperature: | Ambient ±5℃ |
| Applicable Label Length: | 50-150mm (Maximum) |
| Label Thickness: | 0.035-0.08mm |
| Bottle Diameter Range: | 25-40mm |
| Power Supply: | AC 2PH 50Hz 220V |
| Operating Speed: | 3,600 units/hour (normal operation) |
| Power Consumption: | 2.5 kW |
Includes 2-meter conveyor belt (powered, with chain plates). Conveyor belt within labeling section is powered and controlled by the labeling machine.
Operating Principle of Water Bottle Shrinking Sleeve Machine
When a bottle passes through the detection sensor on the conveyor belt, the servo-controlled drive assembly automatically dispenses one label. Simultaneously, the lower label feeding roller assembly feeds the next label, which is then sleeved onto the bottle.
Sensor Positioning Adjustment
Adjust according to the indicated direction. If the label is inserted into the bottle in state A, move the sensor position toward direction B. If in state C, move the sensor position from C toward B until the label is correctly inserted as shown in B.
Technical Drawing
Ordering & Payment Information
| Product Description | Plastic Cup Water Bottle Shrinking Sleeve Machine With Speed 14000pcs/Hour With Auto Infeed System |
| VAT Status | Included |
| Place of Origin | China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% balance before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, extended coverage for software & system |
| Commissioning | Free commissioning within 3 days (customer covers engineer's local food, accommodation, and tickets; additional time charged at USD 150/day) |
After-Sales Service
Complete product quality traceability with 1-year warranty period from equipment acceptance date.
- Free maintenance during warranty period
- Travel and material costs charged for service beyond warranty period
- Free remote operation and maintenance via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments
