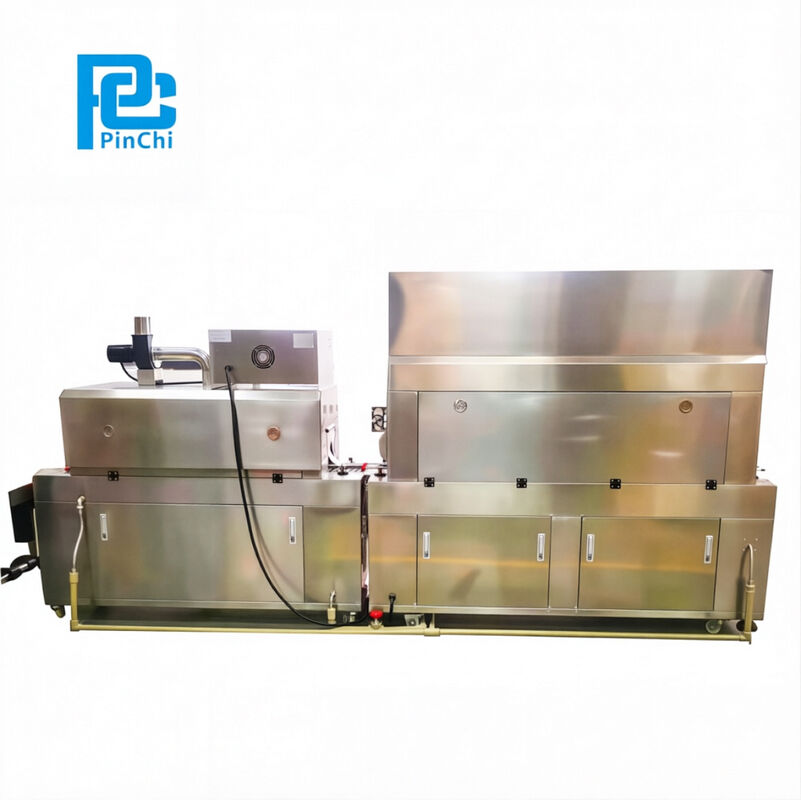

380V PVC PET Bottle Shrink Sleeve Machine Equipment 6000pcs/Hr
|
380V PVC PET Bottle Shrink Sleeve Machine Equipment 6000pcs/Hr
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
| Model Number | ZQW2020W-JY |
Product Details
Name::
6000pcs/hour Steam Sleeve Labeling Machine 50/60Hz For Bottle Label Application
Scope Of Application::
Suitable For Round Bottles, Flat Bottles, Square Bottles, Curved Bottles, Cup-shaped Containers, And Other Similar Products In Industries Such As Food And Beverage, Pharmaceuticals, And Daily Chemicals.
Primary Material:
304 Stainless Steel
Applicable Shrink Film:
PVC,PET,OPS,OPP
Power:
380V 50/60Hz
Packing Details:
Export Standerd Wooden Case
Delivery Time:
40 Days
Automatic Grade:
Automatic
Color:
Bright Silver
Highlight:
380V Bottle Shrink Sleeve Machine
,PET Bottle Shrink Sleeve Machine
,PVC shrink sleeve equipment
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
PET Bottle 6000pcs Steam Sleeve Labeling Machine Super Dryer
Technical Specifications of Sleeve Labeling Machine
| Model: | ZQW2020W-JY |
| Specifications: | 200x200 |
| Applicable Shrink Film: | PVC, PET, OPS, OPP |
| Applicable Product Dimensions: | 200 (W) x 200 (H) x infinite length mm |
| Shrink Packaging Speed: | 60-120 pieces |
| Primary Material: | 304 stainless steel |
| Color: | Bright silver |
| Surface Finish: | Brushed finish |
| Machine Dimensions: | 1720(L)x720(W)x1600(H)mm |
| Machine Weight: | 200KG |
| Steam Tunnel Oven Dimensions: | 1300mm(L) |
| Steam Tunnel Oven Inlet Dimensions: | 200(W)x200(H)mm |
| Conveyor Dimensions: | Total length 1700mm (L), inlet 200mm, outlet 200mm |
| Temperature Control: | Atmospheric pressure 100°C |
| Conveyor Speed: | 0-20 m/min |
Power & Electrical Specifications of Sleeve Labeling Machine
| Power Supply: | 380V 50/60Hz Three-phase four-wire 6mm² 5m |
| Total Power: | 18KW (Two-stage heating, 9KW/18KW) |
| Conveyor Motor: | 60W Electronic Speed Control Motor |
| Conveyor Load Capacity: | 5KG |
Steam System Features
- Steam Sleeve Labeling Machine System: Surrounding 6 upper pipe jets and vertically arranged lower pipe jets
- Steam Heat Recovery System: Pipes recover partial steam heat
- Steam Exhaust System: 200W detachable high-temperature resistant waterproof exhaust fan
- Steam Pressure: Atmospheric natural discharge, 0-0.1MPa
Water Management System
- Water Supply System: Automatic water inlet/shut-off with low-water shutdown protection
- Drainage System: 600mm elevated drain port for effortless natural drainage
- Water Consumption: 9KW model consumes 14KG per hour; 18KW model consumes 28KG per hour
Conveyor System
- Conveyor Belt: 304 Stainless Steel Mesh Conveyor Belt
- Equipped with special drive shaft (no belt slippage, maintenance-free)
- Dirt-resistant mesh support bars
Steam Generator
- Built-in dual-layer steam generator
- Enhanced 9KW 304 heating tubes with thickened walls
- Heat transfer powder uses imported A1 material for enhanced durability and reduced tube burnout
- Delivers 24-hour continuous steam operation
Safety Features
- Anti-scald Protection: Both sides feature protective panels with premium quick-release latches
- Anti-leakage Protection: Dual-layer isolated body design separates steam from electrical systems
- Air Pressure Protection: Electronic pressure-limit shutdown and physical overpressure relief
Payment Terms & Trade Information of Sleeve Labeling Machine
| Product Description | PET Bottle 6000pcs Steam Sleeve Labeling Machine Super Dryer |
| Place of Origin | Made in China |
| VAT Status | With VAT |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term support for software & system |
Commissioning Service: Free commissioning within 3 days. Customer bears engineer's local food, accommodation, and travel tickets. Additional time charged at USD 150/day.
After Sales Service & Support of Sleeve Labeling Machine
- Complete product quality traceability system
- 1-year product quality warranty from equipment acceptance date
- Free maintenance during warranty period
- Travel and material costs charged for service beyond warranty period
- Free remote operation and maintenance via Pinchi Tech AI cloud platform
- Comprehensive support for system updates, algorithm settings, and software adjustments
