PE Flat Square Bottle Shrink Sleeve Machine Labeling Equipment Automatic
|
PE Flat Square Bottle Shrink Sleeve Machine Labeling Equipment Automatic
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
| Model Number | NC-350 |
Product Details
Name：:
Automatic PE Bottle Shrinking Machine With Heat Furannce /Hour Capacity With Pre -Shirnking Device
Sleeve Labeling Machine Weight::
Approximately 400 Kg.
Host Size::
2100LX1150WX2000H (mm).
Price ::
30000-50000usd /per Set
Packing Details::
Export Standerd Wooden Case
Label Length::
80-285mm(Max).
Label Thickness::
0.035-0.08mm.
Automatic Grade::
Automatic
Warranty::
1 Year
Delivery Time::
40 Days
Highlight:
PE square Bottle Shrink Sleeve Machine
,PE flat Bottle Shrink Sleeve Machine
,square Bottle sleeve labeling equipment
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORD DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description

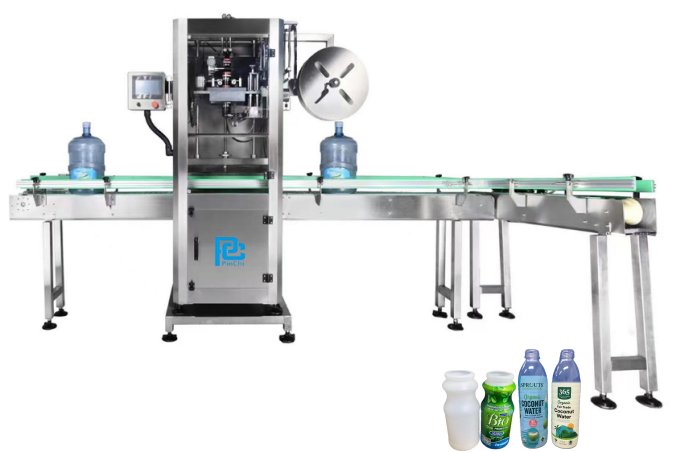

PE Bottle Hot Air Furnace Automatic Shrinking Machine NC-350
The NC-350 Bottle Shrinking Machine is a versatile automatic sleeve applicator designed for round bottles, flat bottles, square bottles, curved bottles, cup-shaped containers, and similar products in the food and beverage, medical, daily chemical, and other light industrial sectors.
Technical Specifications of Bottle Shrinking Machine
| Main Unit Dimensions: | 2100L x 1150W x 2000H (mm) |
| Conveyor Belt Frame: | Includes 2-meter conveyor belt |
| Machine Weight: | Approx. 400KG |
| Applicable Bottle Diameter: | X60–X120 (mm) |
| Bottle Height Range: | 100–320 (mm) |
| Applicable Bottle Shape: | Round |
| Label Length: | 80–285mm (Max) |
| Label Thickness: | 0.035–0.08mm |
| Power Supply: | 220V |
| Operating Speed: | 6000–12000 bottles/hour |
| Power Consumption: | 2.5KW (excluding shrink section) |
| Applicable Product Temperature: | Ambient +5°C |
Bottle Shrinking Machine Configuration Notes: Replace center guide columns, bottle-separating screws, and cutting discs when bottle shapes or sizes vary. Conveyor belt power within the labeling machine section is controlled by the labeling machine.
Machine Details:
Standard Mechanical Configuration Of Bottle Shrinking Machine
Adjustable Cutter Head: Innovative rotary cutting mechanism
Single-Position Center Guide Pillar: Ensures stable label feeding
Synchronized Bottle Separator: Minimizes bottle movement during conveyance
Label Brush Assembly: Enhances sleeve labeling precision
Label Control Sensor Frame: Unique wing-sensor integration improves film cutting accuracy
Touchscreen Control Panel: Enables personalized operation
technical drawing Of Bottle Shrinking Machine
Payment Terms & Trade Information Of Bottle Shrinking Machine
| Product Model | Automatic PE Bottle Shrinking Machine With heat furannce /Hour Capacity With Pre -Shirnking Device |
| Place of Origin | Made in China |
| VAT | Included |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long term for software & system |
| Commissioning | Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day) |
After Sales Service Of Bottle Shrinking Machine
- Complete product quality traceability with 1-year warranty from equipment acceptance date
- Free maintenance during warranty period; travel and material costs apply for post-warranty service
- Free remote operation and maintenance services via cloud platform for system updates, algorithm settings, and software adjustments
