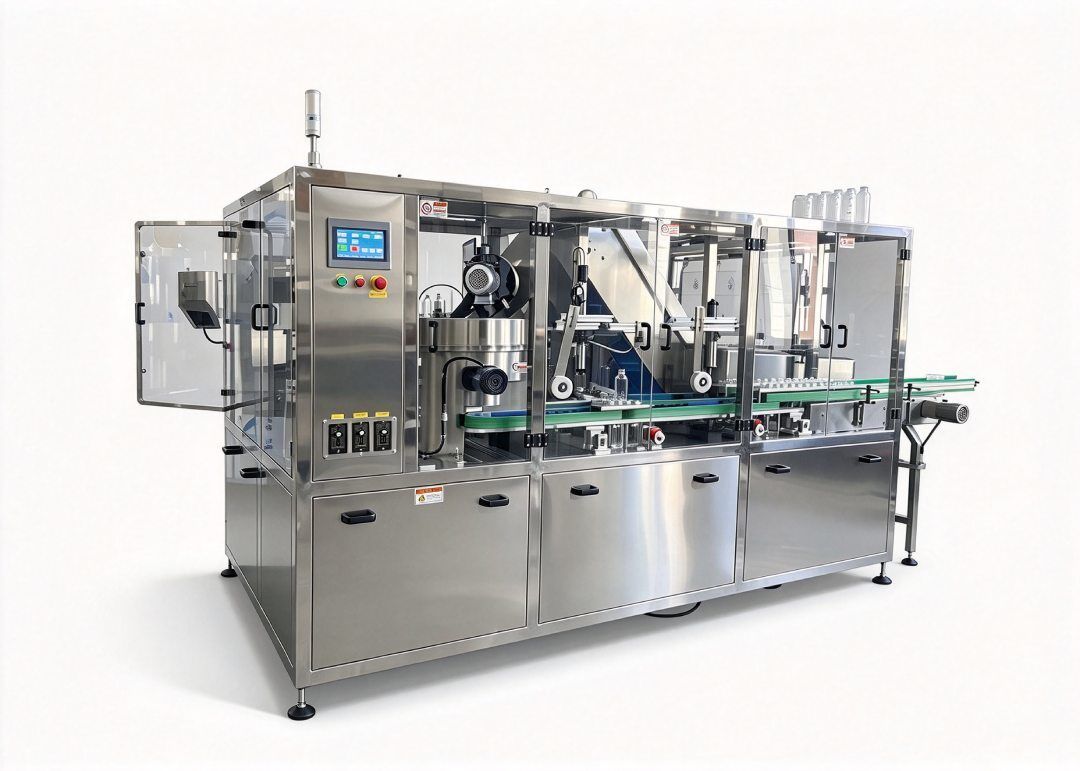

Automatic Horizontal Linear Bottle Unscrambler With Elevator | High Compatibility & Fast Changeover
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
Fully Automatic Bottle Unscrambler
,Stainless Steel SUS304 Bottle Unscrambler
,PLC Control System Bottle Unscrambler
This horizontal linear bottle sorting machine utilizes advanced horizontal linear bottle sorting technology and is specifically designed to handle plastic bottles of various shapes (such as round, flat, square, and oval bottles). Equipped with a high-capacity bottle elevator, the machine automatically conveys loose bottles to the sorting chamber, where they undergo precise orientation and alignment along a linear track before being delivered upright and smoothly to the downstream filling line.
Its core advantage lies in its modular and digitally adjustable design, which eliminates the need for cumbersome tool disassembly when changing bottle types, significantly reducing production line downtime. The compact, linear layout not only saves space but also enables flexible integration with filling machines and labelers, making it a key tool for building a high-efficiency, low-maintenance-cost smart packaging plant.
This product is widely used for multifunctional, fully automatic bottle sorting in the food and beverage industries, as well as in sectors such as condiments, fruit juices, and milk.
- Suitable for All Materials and Shapes: Easily handles plastic bottles made of various materials, such as HDPE, PET, and PP. Whether they are standard round or square bottles, or specialty bottles such as flat, curved, handle-equipped, or irregularly shaped bottles, the system ensures stable bottle sorting.
- Quick-Change System: Features a scale indicator, digital display adjustment, or quick-lock module design, eliminating the need for any adjustment tools when changing bottle types.
- Intelligent Interlocked Material Storage: The bottle sorter and the material storage elevator operate via closed-loop control using photoelectric sensors. When the material level in the bottle sorting bin is low, the elevator automatically starts to replenish the material; when the material level is sufficient, it automatically stops to prevent material buildup and wear.
- Integrated Touchscreen Operation: Equipped with a PLC from a leading international brand and a color touchscreen, it supports the storage of multiple sets of bottle type parameters and one-touch recall.
| Model | LC-GSGZ-06 |
|---|---|
| Main Unit Dimensions | L: 3M × W: 1.8M × H: 1.7M |
| Elevator Dimensions | L: 2.7M × W: 1.2M × H: 2.7M (Standard Configuration) |
| Production Speed | Custom |
| Air Supply Pressure | Required |
| Air Consumption | 0.5 cubic meters per hour |
| Compatible Bottle Types | Specifics subject to the bottles provided by the customer |
| Main Unit Power | 2 kW, 220 V, 50 Hz |
| Equipment Weight | 550 kg |
| Description of Goods / Model | Automatic Horizontal Linear Bottle Unscrambler with Elevator |
|---|---|
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after the receipt of advanced payment |
| Warranty | 1 year for complete machine, long time for software & system |
| Commissioning | Free commissioning within 3 days; customer bears engineer's local food, accommodation and tickets; extra time charged at USD 150/day |
Note: The table above includes a "With VAT" remark column as provided in the original terms.
The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.
Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
