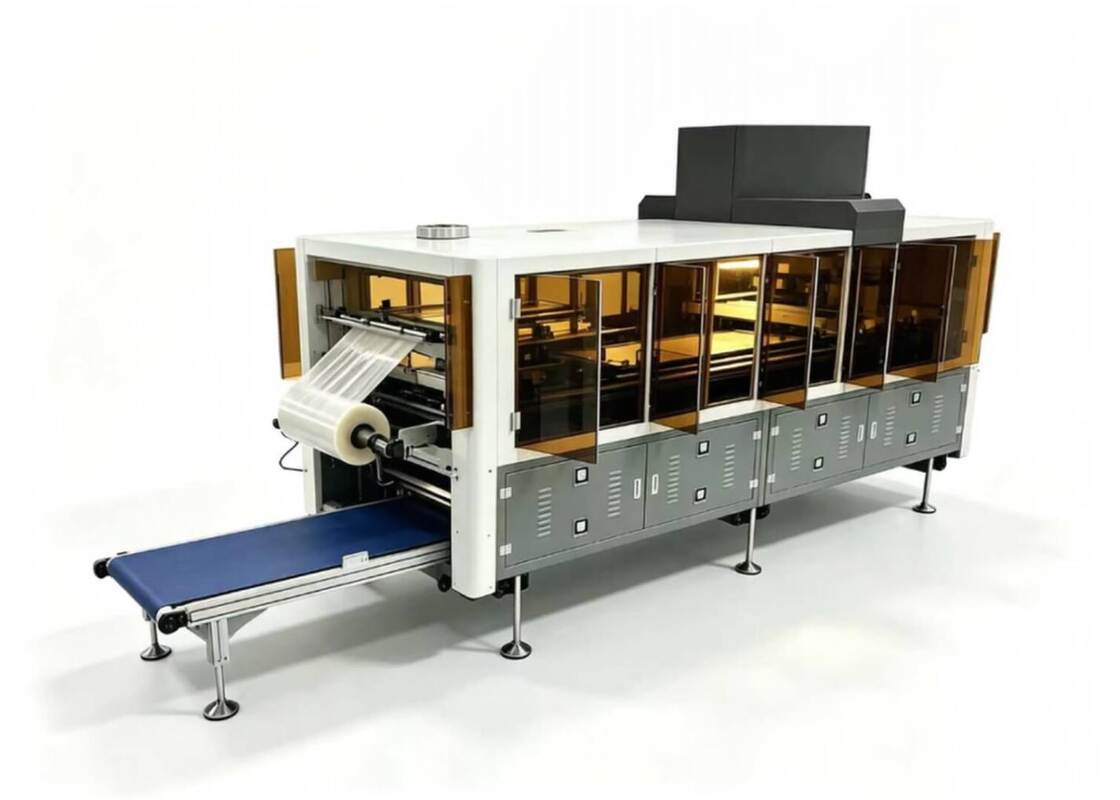

8000 BPH Automatic Bottle Packing Machine with Smart Memory Motor and PLC Touch Screen Vacuum Heat Sealer
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
The vacuum heat-sealing packaging machine is specifically designed for bottled and tray-packed products. Before bagging, bottles are loaded onto a tray, which is then pushed into the bag along with the bottles, followed by vacuum extraction and sealing. This system integrates high-vacuum extraction, heat-sealing, and intelligent anti-jamming error prevention.
Utilizing innovative "smart memory motor" technology, this machine significantly reduces downtime for maintenance, making it an ideal choice for automated, high-standard vacuum packaging in industries such as food and beverage.
- Patented Smart Memory Motor: Automatically stores positions of jammed bottles and packaged items
- Restart Without Clearing Materials: In case of jams, restart with single button press without material clearance
- One-Step Ultra-Fast Changeover: No material clearance needed when switching production lines or moving equipment
- Tiered Security Permissions Management: Built-in Level 1, 2, and 3 operating permissions prevent unauthorized parameter tampering
- Pallet-First, Bag-Second Design: Robotic arm automatically loads bottles onto pallets, then pushes entire pallet into packaging bag
- Heavy-Duty Industrial-Grade Chassis: Welded square-section chassis provides excellent vibration resistance and stability
| Machine Model | Fully Automatic Vacuum Packaging Machine |
|---|---|
| Packaging Dimensions | L589 mm × W356 mm × H100 mm |
| Packaging Capacity | 8,000 bottles per hour |
| Bottle Change Adjustment Method | Manual Adjustment + Replacement Parts |
| Bag Feeding Method | Automatic Bag Feeding |
| Bottle Material | PE |
| Compatible Plastic Bag Material | Nylon Laminated Bags (Suitable for Vacuuming) |
| Single-Layer Plastic Bag Thickness | 0.08 mm |
| Packaging Layout | 16 bottles/row × 6 rows + 15 bottles/row × 5 rows |
| Packageable Dimensions | Maximum: 650 mm (L) × 450 mm (W) × 150 mm (H) Minimum: 500 mm (L) × 350 mm (W) × 80 mm (H) |
| Description | 8000 BPH Automatic Bottle Tray Vacuum Heat Sealer | With Smart Memory Motor | With VAT |
|---|---|
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long time for software & system |
| Commissioning | Free commissioning within 3 days, customer bears engineer's local food, accommodation and tickets; extra time charged at USD 150/day |
The overall product quality has traceability, with a product quality warranty period of 1 year calculated from the date of equipment acceptance.
Free maintenance is provided during the warranty period. After-sales service beyond the warranty period incurs corresponding travel and material costs.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services through the Pinchi Tech AI cloud platform, particularly for system updates, algorithm settings, software adjustments, and related services.
-
