Fully Automatic Stainless Steel PLC Control Cap Assembly Machine for Bottle Capping
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |

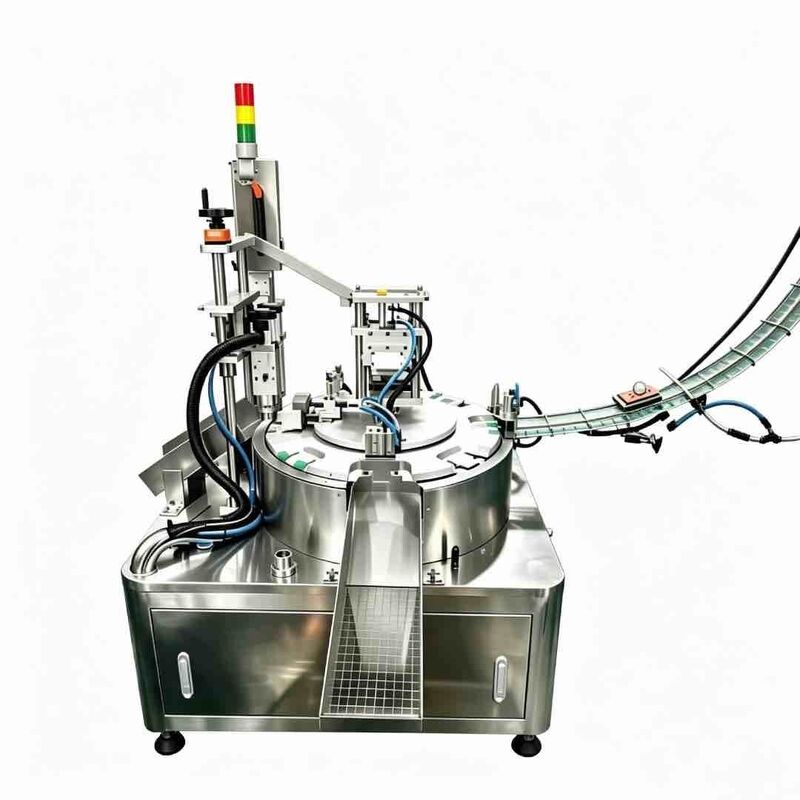

This machine is a high-precision, compact, fully automatic intermittent rotary bottle cap assembly machine designed for automatic conveyance, precise positioning, mechanical latching, and pre-assembly or screw-tightening of various packaging caps.
The entire machine features a turntable topology driven by a precision indexing unit. Materials are fed in an orderly manner via a chain conveyor on the right side, utilizing a multi-station precision aluminum alloy indexing turret for multi-station intermittent processing.
Combined with precision vertical pneumatic slides, dual-guide-rod actuator cylinders, and pneumatic gripping fingers mounted above, it achieves fully automated production line operation encompassing "material feeding, cap gripping and placement, and vertical assembly."
The main body is constructed from SUS304 stainless steel that meets sanitary standards, making it an ideal and highly efficient assembly machine for the food, beverage, cosmetics, and personal care packaging industries.
- Cap Elevator: Continuous bulk feeding with large-capacity floor hopper, vertical belt conveyor with food-grade bump belt, and smart level sensor for automatic monitoring
- Rotary Assembly: Precise positioning with dedicated guide rails, multi-station rotary turret with high-precision indexing drive, and transparent acrylic safety guard
- Intelligent Control: Rotating HMI touchscreen with multi-language support, three-color LED signal tower, and compliance with GMP and FDA standards using SUS304 stainless steel
Container Materials: Glass bottles, plastic bottles (PET, HDPE, etc.)
Cap Types: Screw caps, press-in caps, tamper-evident caps, child-resistant caps, spray nozzle caps
Size Range: Compatible with containers measuring 12-70mm in diameter and 30-190mm in height
Flexibility: Rapid switching between multiple specifications supported
| Description | Details |
|---|---|
| Product Model | Intermittent Turntable Fully Automatic Bottle Cap Assembly & Capping Screwing Machine |
| VAT Status | With VAT |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% balance before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, extended coverage for software & system |
| Commissioning | Free commissioning within 3 days (customer bears local expenses for engineer accommodation and tickets) |
Quality Warranty: Full product quality traceability with 1-year warranty period from equipment acceptance date
Maintenance Services: Free maintenance during warranty period; travel and material costs apply for post-warranty services
Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments
