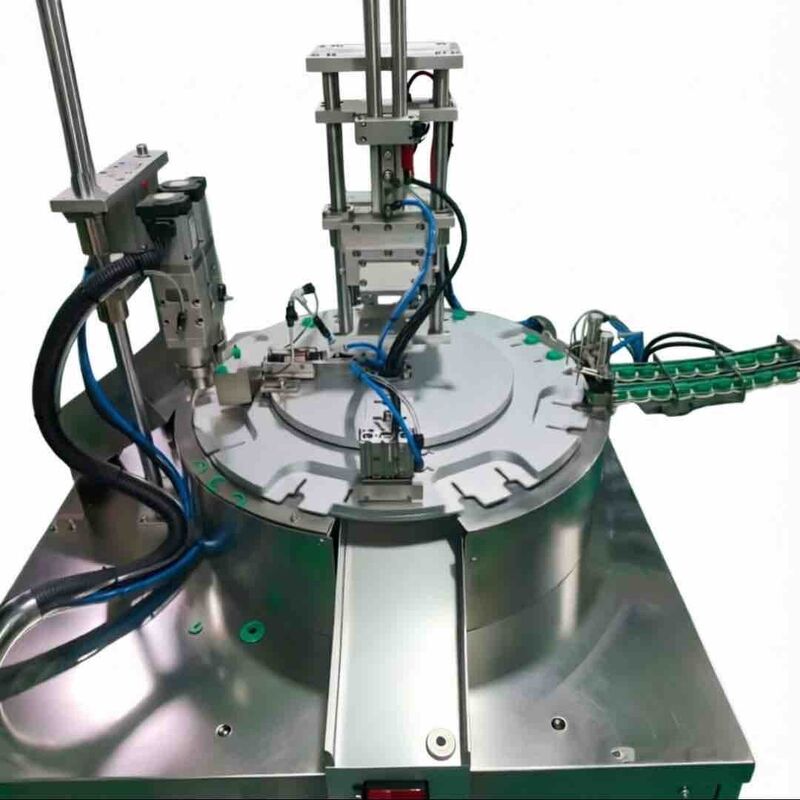

Automatic Bottle Cap Assembly And Separation Machine For Packaging Line
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | CE |
Equipment Overview
This equipment utilizes a high-precision, enclosed cam indexer, which offers high accuracy, stable and reliable operation, and a long service life.
The human-machine interface (HMI) offers intuitive and convenient setup and operation. PLC control ensures stable operation; variable-frequency drive control allows for adjustable production speeds and automatic counting. The machine features an automatic shutdown function and a “no material, no operation” feature. High-precision cam indexing ensures accurate positioning. Manufactured from SUS304 stainless steel, the equipment fully complies with GMP requirements.
It integrates automated cap handling, vision/photoelectric inspection, pneumatic cap gripping, and precision servo capping or press-on capping functions. It is widely used for sealing and packaging bottled products in industries such as food, beverages, personal care, and chemicals.
Key Features
● High-Speed & Precise Cap SeparationFeatures an advanced centrifugal or vibratory sorter that achieves rapid, damage-free bottle cap separation.
● Zero-Damage Mechanical Handling: Both the sorting mechanism and the conveyor tracks are precision-engineered and coated with wear-resistant materials. This ensures that bottle caps move smoothly and without obstruction during positioning, preventing scratches, wear, or deformation, thereby protecting the surface of the bottle caps.
● Intelligent PLC & Touchscreen ControlPowered by a user-friendly PLC system with a multi-language HMI touchscreen. Features real-time speed adjustment, output counting, error diagnostics.
Equipment Specifications:
| Power Supply: | AC 220V ±10%, 50/60 Hz |
| Air Supply: | 0.5 MPa–0.6 MPa |
| Feeding Method: | Elevator-type |
| Lowering Method: | Vibrating guide rail |
| Compatible Parts: | Manufactured according to provided samples |
| Production Speed: | 2,500 pieces/hour |
| Total Power: | 5.5 kW |
| Machine Control: | PLC automatic program control + touchscreen HMI operation |
| Machine Construction: | All 304 stainless steel |
| Dimensions: | Approx. 1800 × 1600 × 2300 mm |
Payment Terms and Trade Terms
| Description of Goods Model | Remarks |
| Automatic Bottle Cap Assembly And Separation Machine For Packaging Line | With VAT |
| Place of Origin: Made in China | |
| Price Validation: 100 days | |
| Payment Term: T/T, 30% deposit, 70% to be paid before loading against FAT | |
| Delivery Time: 35 days after the receipt of advanced payment | |
| Warranty: 1 year for complete machine, long time for software&system | |
| Commissioning: free commissioning within 3days, customer bear for the engineer’s local food and accommodation and tickets, extra time will be charged by usd150/day. | |
After Sales Service
The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.
Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform,
particularly for the system updating, algorithm setting, software adjustment, etc.
