Automated SUS304 Plastic Bag Stacker Machine 2000mm Double Station 220V
|
Automated SUS304 Plastic Bag Stacker Machine 2000mm Double Station 220V
| Place of Origin | FOSAHN |
| Brand Name | PINCHI |
| Certification | CE |
Product Details
Productname:
Bag Stacker Machine
Machinetype:
Automated Stacking Equipment
Powersupply:
220V/380V, 50/60Hz
Bagsizerange:
Width: 200-600 Mm, Length: 300-900 Mm
Powerconsumption:
Approximately 2.5 KW
Stackingheight:
Adjustable Up To 1500 Mm
Dimensions:
Length 2500 Mm X Width 1200 Mm X Height 1800 Mm
Safetyfeatures:
Emergency Stop, Safety Guards, Overload Protection
Framematerial:
Stainless Steel SUS304
Materialcompatibility:
Plastic Bags, Paper Bags, Woven Bags
Stackingcapacity:
Up To 100 Bags Per Minute
Machineweight:
Around 800 Kg
Operationmode:
Automatic And Semi-automatic
Applicationindustry:
Packaging, Food, Chemical, Agriculture
Controlsystem:
PLC With Touch Screen Interface
Highlight:
Plastic Bag Stacker Machine
,SUS304 Bag Stacker Machine
,220V bag stacking machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description

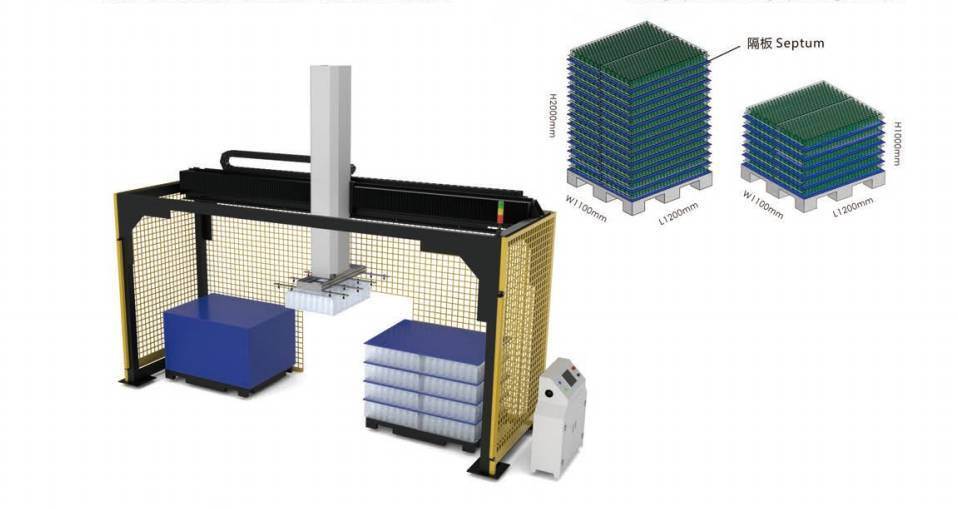

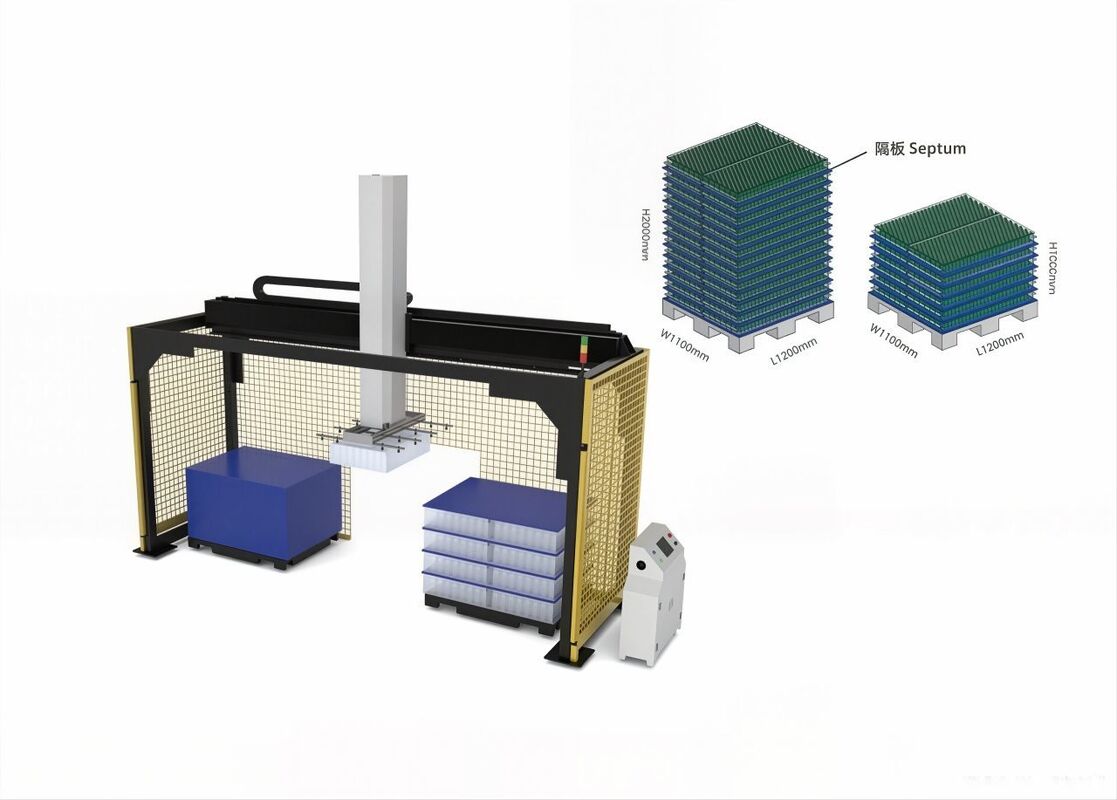

Auto Double Station Big Bag Stacker 2000mm
Equipment Features
The 38-D Big Bag Stacker machine features simple operation, replacing repetitive manual bag picking work. With a maximum stacking height of 2000mm, this double-station stacking system offers versatile functionality where one station can also be used for automatic picking and placing of partitions or pallets.
Key Advantages:
- Air-avoidance design provides more open operating space for forklift operation
- Two-column or four-column box-type frame structure for heavy load support
- Constructed from high-strength alloy materials for exceptional strength and rigidity
- Smooth operation with excellent resistance to deformation under heavy-load conditions
Technical Specifications
| Specification | Details |
|---|---|
| Equipment Dimensions (L×W×H) | 3800mm × 1800mm × 3100mm |
| Equipment Frame Material | 80mm×40mm×4.0mm Carbon Steel |
| Equipment Appearance | Sheet Metal Spraying Gray/White |
| Input Gas Source | 0.6-0.8MPa |
| Input Voltage | 220V 50Hz |
| Maximum Gas Consumption | 10L/min |
| Maximum Power Consumption | 2KW/H |
| Maximum Single-layer Arrangement Size | 1200mm × 1100mm × 420mm |
| Minimum Single-layer Arrangement Size | 1000mm × 1000mm × 60mm |
| Minimum Pick/Place Package Height | 500mm |
| Maximum Stacking Height | 2000mm |
| Maximum Packet Pickup Weight | ≤12kg |
| Maximum Speed | 36 seconds/time |
| Adjustment Mode | Electric |
| Packet Picking Mode | Vacuum |
| Traverse Module Setting Position | Top of the Machine |
| Stacking Layers | Self-setting |
| Docking with Packer | I-type, L-type or T-type Available |
| Stacking Station | Double-station |
| Pick-and-Place Partition or Pallet Function | Optional |
| Bottle Parameter Recipe Storage | 50 Sets |
| System Remote Communication Function | Yes |
| System Operation Authority | 3 Levels |
Payment Terms & Trade Information
| Item | Details |
|---|---|
| Product Description | 38-D Big Bag Stacker Machine (With VAT) |
| Place of Origin | Made in China |
| Price Validation | 100 Days |
| Payment Terms | T/T, 30% deposit, 70% before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term for software & system |
| Commissioning | Free commissioning within 3 days (customer bears local expenses for engineer) |
After Sales Service
Our products feature comprehensive quality traceability with a 1-year warranty period starting from equipment acceptance date.
Free maintenance is provided during the warranty period. For services beyond warranty, corresponding travel and material costs will apply.
We offer free remote operation and maintenance services through our Pinchi Tech AI cloud platform, including system updates, algorithm settings, software adjustments, and technical support.
