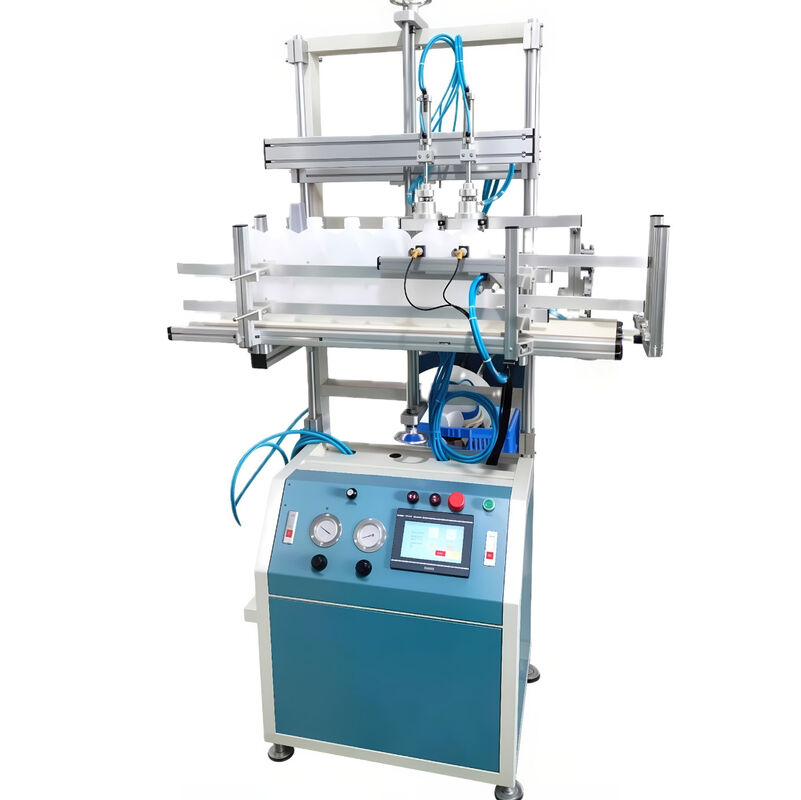

Pneumatic Filled Glass Bottle Inspection Equipment Leak Tester Machine 304SS
|
Pneumatic Filled Glass Bottle Inspection Equipment Leak Tester Machine 304SS
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
Product Details
Keyword::
Leak Tester Machine
MOQ::
1 Set
Scope Of Application::
Food And Beverage, Daily Chemical, And Pharmaceutical Industries.
Automatic Grade::
Automatic
Driven Type::
Pneumatic
Material::
Stainless Steel
Warranty::
1 Year
Delivery Time::
40 Days
Highlight:
304SS glass bottle inspection equipment
,Pneumatic glass bottle inspection equipment
,304SS filled bottle inspection machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30WORK DAYS
Payment Terms
T/T
Supply Ability
20SET
Product Description
Automatic Stainless Steel Leak Tester Equipment For 3000 Bottles Per Hour Leak Detection
This integrated system combines a fully automatic plastic empty bottle leak tester with semi-automatic strapping capabilities, designed for 1.2-liter round bottles with an output of approximately 3000 units. The equipment seamlessly integrates with blow molding machines and filling equipment to achieve fully automated production lines.
Equipment Overview
The leak detection system primarily inspects the seal integrity of empty bottles prior to filling, ensuring containers are free from leaks and defects to safeguard product quality and safety. Using pneumatic or mechanical means, the equipment applies pressure or vacuum to bottle bodies while sensors detect internal pressure changes to identify minute leaks. This system is ideal for food and beverage, daily chemical products, and pharmaceutical packaging industries.
Working Principle
The equipment employs differential pressure or vacuum decay detection principles:
- Bottles are secured by fixtures and filled with compressed air at preset pressure (or evacuated to vacuum)
- High-precision pressure sensors continuously monitor internal pressure changes
- If pressure drops exceed threshold within set time, leakage is detected and system automatically marks or rejects bottles
- PLC-controlled process enables multi-station simultaneous testing for enhanced efficiency
Equipment Parameters
| Parameter | Specification |
|---|---|
| Detecting Speed | 3000 to 12000 bottles per hour |
| Conveyor Length | 2000~3500 mm |
| Conveyor Height Adjustment | 750mm to 1200 mm |
| Machine Dimensions | 3.5m (L) × 1.0m (W) × 1.6m (H) |
Payment Terms and Trade Information
| Item | Details |
|---|---|
| Product Description | Leak Detector and Strapping Machine Link Semi-Automatic Strapping Machine Blow Molding Machine, 1.2-liter Round Bottles, Output Approx. 3000 (With VAT) |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term support for software & system |
| Commissioning | Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day) |
After Sales Service
The overall product quality has full traceability with a 1-year warranty period calculated from equipment acceptance date.
Free maintenance during warranty period; travel and material costs apply for service beyond warranty.
Daily operation and maintenance services include free remote operation and maintenance via Pinchi Tech AI cloud platform, particularly for system updates, algorithm settings, and software adjustments.
